tBOX810-838-FL-E3845-TMDC
AXIOMTEK
SKU: 57162100

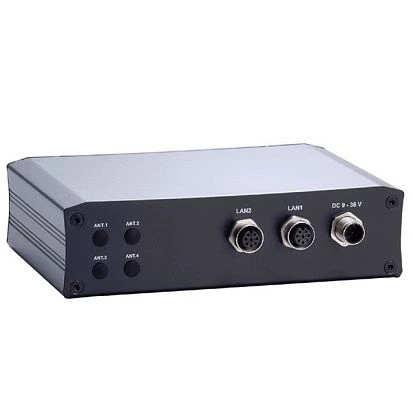

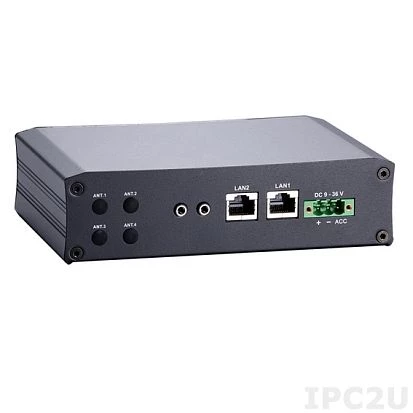

Marine Embedded Server with Intel Atom E3845 1.191GHz processor, 4Gb DDR3L, VGA, 2xRJ45 GB LAN, 2xCOM, 2xUSB, DIO, 2xPCIe Mini, SIM Socket, 2.5" SATA, mSATA, power 9-36VDC, PN E26N810114
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
ECC
No
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB 2.0
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

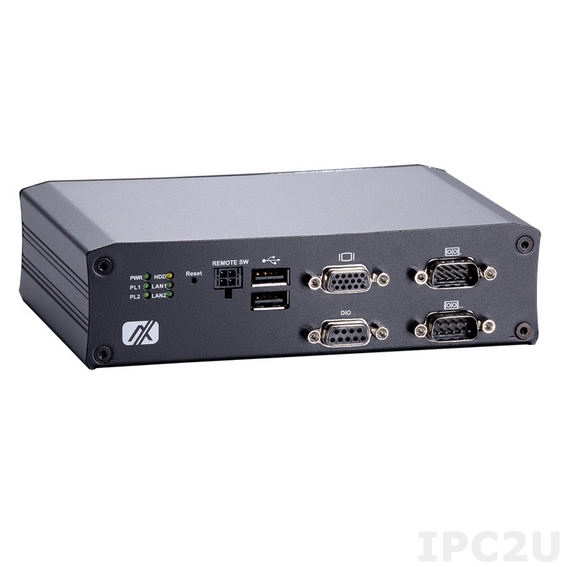

2xDB9, DB15 VGA, 2xRJ45, 2xUSB, DB9 DIO, M12 DC-in
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Embedded Linux OS
Dimensions and weight
Width
163.8 mm
Height
44 mm
Depth
108 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms w/ SSD (5-500Hz, X, Y, Z direction; random) 0.8 Grms w/ HDD (5-500Hz, X, Y, Z direction; random)
Standards and Certifications
Certifications
CE, IEC 60945
EMS
EN 50121
Rolling Stock
EN 50155
Vehicle
ISO 7637-2, E-Mark
Dimensions
Net Weight
0.77 kg
Gross Weight
2 kg
