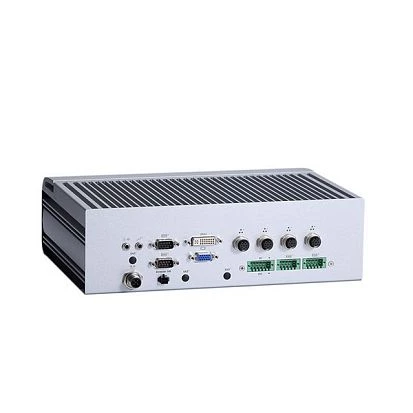

tBOX324-894-i3-DIO-TMDC-CAN-G

tBOX324-894-i3-DIO-TMDC-CAN-G

AXIOMTEK
SKU: 08946000
Embedded Server with Intel Core i3-7100U 2.4GHz processor, up to 32GB DDR4 RAM, VGA/DVI-I, 4xRJ-45 LAN, 3xCOM, 1xCOM/CAN, 4xUSB, DIO, CFast Socket, 2x 2.5" HDD SATA bays, SIM Slot, 3x full-size PCIe Mini, 14...32VDC, w/GND
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-D, DB15 VGA, 4xUSB, Mic In, Line Out, 4xM12, 3x10-pin COM (terminal block), CFast slot
System Power Input
Input Voltage DC
14 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
288 mm
Height
85.7 mm
Depth
211 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms
Standards and Certifications
Certifications
CE, FCC
Explosion safety
EN 45545
Marine grade
DNV, IEC 60945 4th
Rolling Stock
EN 50155, EN 50121-3-2
Automotive
ISO 7637
Vehicle
E-Mark
Dimensions
Net Weight
5 kg
Gross Weight
6.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
