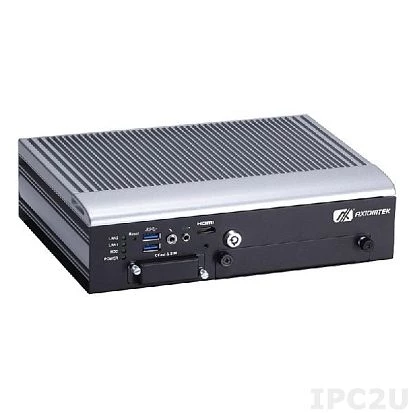

tBOX322-882-FL-i3-8GB-DC
AXIOMTEK
SKU: 06980700
Embedded Server with Intel Core i3-4010U 1.7GHz CPU, 8GB DDR3 RAM, HDMI/DVI-I, 2xM12 GB LAN, 2xCOM, USB 3.0, SATA3, CFast Slot, 2.5" HDD Bay, 3x PCI Express Mini Card, 2xSIM
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Intel Core i3-4010U
Max CPU frequency
1.7 GHz
Memory
Form-factor
DDR3
Default on Board Memory
8 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
3G (Optional)
Connectors
Connectors

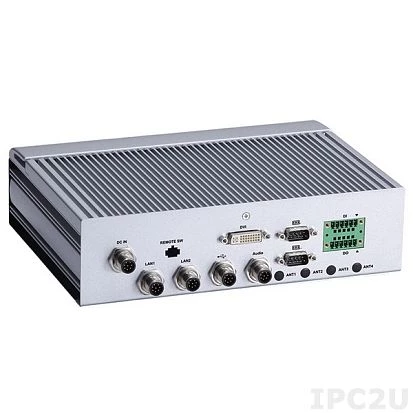

2xDB9, DVI-I, HDMI, 2xUSB, Mic In, Line Out, 2xM12, DIO (terminal block), M12 USB, M12 Audio, M12 DC-in
System Power Input
Input Voltage DC
14 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS
Dimensions and weight
Width
244 mm
Height
65.1 mm
Depth
180.5 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
SSD/CFast: 3 Grms, 5-500 Hz, X, Y, Z directions
Standards and Certifications
Certifications
CE
Rolling Stock
EN 50155, EN 45545
Safety
EN 60950-1
Dimensions
Net Weight
4 kg
Gross Weight
4 kg
