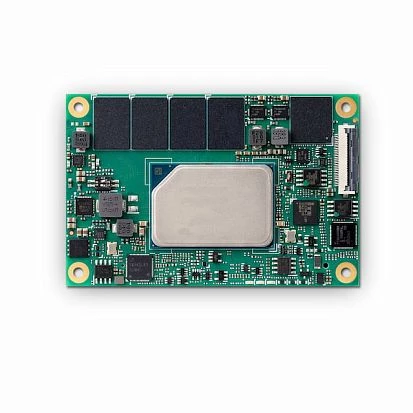

t2nanoX-EL-x6211E-8G-32G

t2nanoX-EL-x6211E-8G-32G

ADLink
SKU: 10732700
Mini COM Express Type 10 module with Intel Elkhart Lake Atom x6211E, 8GB LPDDR4, 32GB EMMC, -40...+85C
Price on request
Available
Available

System Architecture
Form Factor
COM Express Mini
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6211E
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, DDI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
USB Total
8
USB 2.0
6
USB v3.x
2
Drive interfaces
SATA 3
2
Software
Operating System Compatibility
Ubuntu, Vxworks, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
84 mm
Length
55 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
