SICOM2000-L2-2G2GE20T
Kyland
SKU: 10260400

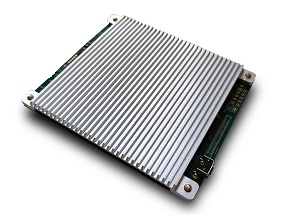

24 port layer 2 managed embedded switch, 2x1000Base-X, 10/100/1000Base-T(X) Combo ports, 2x10/100/1000Base-T(X) RJ45 ports, 20x10/100Base-T(X) RJ45 ports, 5VDC, -40...+70C
Price on request
Available
Available
Ethernet
Total Ethernet
24
10/100 Mbit/s
20
Type 10/100 Mbit/s
20xRJ-45
10/100/1000 Mbit/s
4
Type 10/100/1000 Mbit/s
2xRJ-45, 2xCombo (RJ-45 or SFP)
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
DT-Ring, DRP-DHP
Supported functions
Port Mirror
MAC Table Size
16000
Packet Buffer Size
4 kBit
Max. Number of VLANs
4000
Priority Queues
8
IGMP Groups
64
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Syslog, Telnet, VLAN, PVLAN, SNTP Client, QoS, GVRP, TFTP, LACP, FTP, IGMP Snooping v1/v2/v3
Reservation protocols
MSTP, RSTP, DT Ring, DRP/DHP
Security Protocols
HTTPS, RADIUS, SSL, TACACS+, IEEE 802.1X Network Access Control, ACL
IEEE Standard
ieee_802.3i, ieee_802.3u, ieee_802.3ab, ieee_802.3x, ieee_802.1p, ieee_802.1q, ieee_802.1w, ieee_802.1s, ieee_802.1x
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded
Dimensions and weight
Width
95 mm
Depth
15.9 mm
Height
80 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CISPR 22 Class A, FCC
EMI
FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-29
Vibration And Shock
IEC 61373
Dimensions
Net Weight
1.9 kg
Gross Weight
2.5 kg
Ethernet
