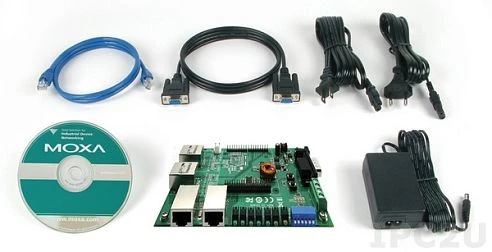

EOM-104-FO Evaluation Kit
MOXA
SKU: 05500900
4-port embedded managed Ethernet switch module, 2x10/100BaseT(X) and 2x100BaseFX interfaces, with evaluation board for testing and application development, -40...75°C
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, RMON, TFTP, BootP, DHCP Client, RARP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
3..3 V
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
54 mm
Depth
8.3 mm
Height
60 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, RMON, TFTP, BootP, DHCP Client, RARP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
3..3 V
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
54 mm
Depth
8.3 mm
Height
60 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, RMON, TFTP, BootP, DHCP Client, RARP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
3..3 V
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
54 mm
Depth
8.3 mm
Height
60 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, RMON, TFTP, BootP, DHCP Client, RARP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
3..3 V
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
54 mm
Depth
8.3 mm
Height
60 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
0.9 kg
