SKU: 02316300

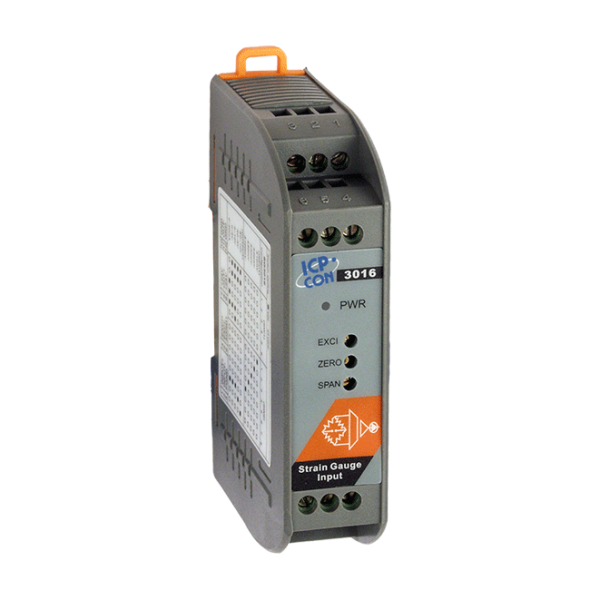

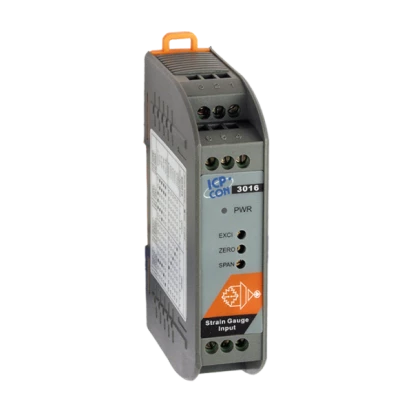

Isolated Strain Gauge Signal Conditioner, 24 VDC Power Supply
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Load Cell
+/-10 mV, +/-20 mV, +/-30 mV, +/-50 mV, +/-100 mV
Total channels of analog input
1
Analog Output
Channels of analog input
1
Current range
0...20 mA
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
25 mm
Depth
71 mm
Height
114 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.3 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Load Cell
+/-10 mV, +/-20 mV, +/-30 mV, +/-50 mV, +/-100 mV
Total channels of analog input
1
Analog Output
Channels of analog input
1
Current range
0...20 mA
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
25 mm
Depth
71 mm
Height
114 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.3 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Load Cell
+/-10 mV, +/-20 mV, +/-30 mV, +/-50 mV, +/-100 mV
Total channels of analog input
1
Analog Output
Channels of analog input
1
Current range
0...20 mA
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
25 mm
Depth
71 mm
Height
114 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.3 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Load Cell
+/-10 mV, +/-20 mV, +/-30 mV, +/-50 mV, +/-100 mV
Total channels of analog input
1
Analog Output
Channels of analog input
1
Current range
0...20 mA
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
25 mm
Depth
71 mm
Height
114 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.3 kg

Documentation
User manual SG-3016 Datasheet SG-3016
Documentation
User manual SG-3016 Datasheet SG-3016
Documentation
User manual SG-3016 Datasheet SG-3016
Documentation
User manual SG-3016 Datasheet SG-3016
