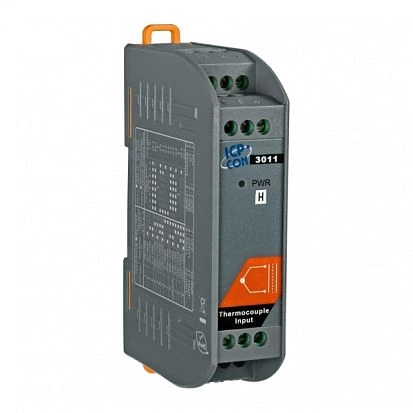

SG-3011H

SG-3011H

ICP DAS
SKU: 07359500
Isolated Thermocouple Signal Conditioner, Output 0...10V/0...20mA, 10...30 VDC Power
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С, T: -100...+400°C, N: -100...+1300°C, R: +500...+1750°C, J: -40...+760°C, K: 0...+1000°C, E: 0...+1000°C, S: +500...+1750°C, B: +500...+1800°C, C: 0...+2000°C
Total channels of analog input
1
Analog Output
Channels of analog input
1
Current range
0...20 mA
Voltage range
0...10 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
25 mm
Depth
71 mm
Height
114 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.1 kg
Gross Weight
0.16 kg
