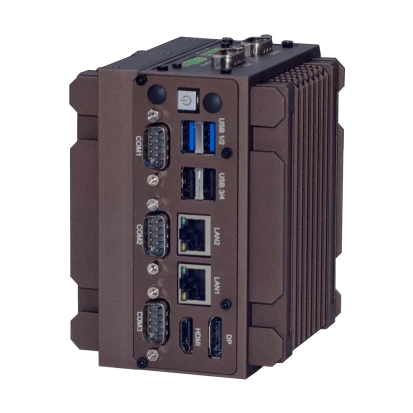

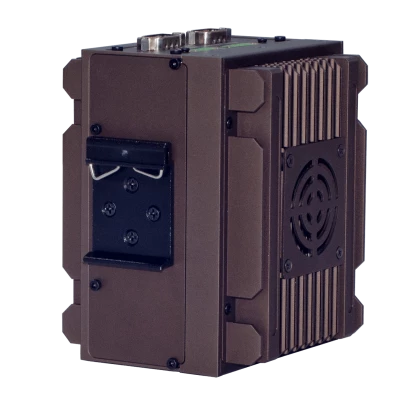

RVS-ZD1
Enbik Technology Co.,Ltd
SKU: 80340100
RugCon RVS-Z DIN-Rail Mini AI Edge Computer, Support RTX4050/4060/4070/RTX2000ADA, Intel Atom x7433RE CPU, up to 16GB DDR5 RAM, M.2 2242 SATA, Mini-PCIe, M.2 Key E, DP/HDMI/2xLAN/4xUSB, Ignition Control, 6-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Amston Lake, Twin Lake
Processor Installed
Options Available – Contact Sales
Socket
Varies by Configuration
CPU Support Type
Atom, Core N-Series
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
MXM Options Available – Contact Sales
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Audio, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
6..48 V
Power Ignition Control
Yes
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
0-95%
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
