RVS-T1M
Enbik Technology Co.,Ltd
SKU: 80302200

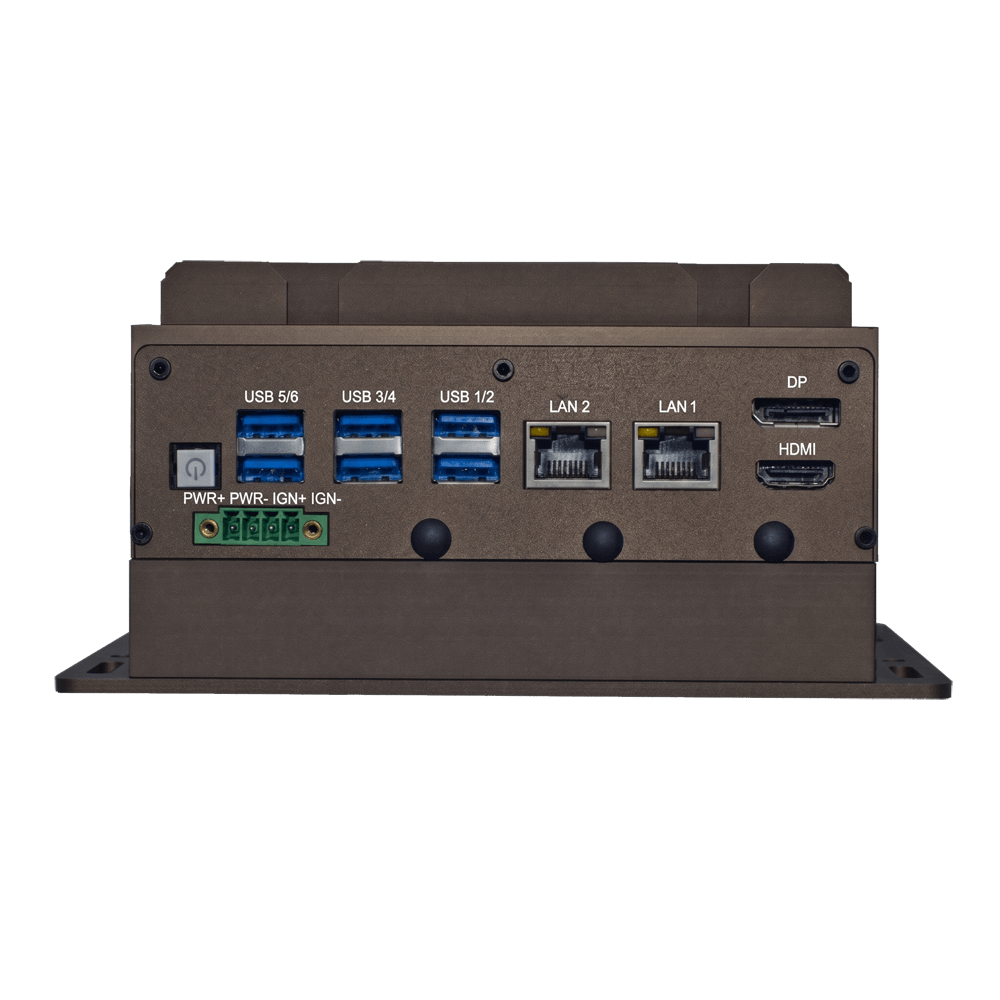

RugCon RVS-T1M Mini Palm-Sized Edge AI Computer equipped with MXM NVIDIA RTX4050/MX550/A2000, Intel 14th/13th/12th Gen CPU, Up to 64GB DDR5 RAM, DP/HDMI/2xLAN/2xCOM/8xUSB, Remote Ignition Control, 6-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake, Meteor Lake
Processor Installed
Options Available – Contact Sales
Socket
Varies by Configuration
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
MXM Options Available – Contact Sales
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
2
USB v3.x
6
Drive interfaces
RAID Levels
0, 1
M.2
2
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3052 B, 2242 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 8xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 2xM12 LAN
System Power Input
Input Voltage DC
6..48 V
Power Ignition Control
Yes
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
203 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN 55032, EN 55035
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.2 kg
Gross Weight
1.6 kg
