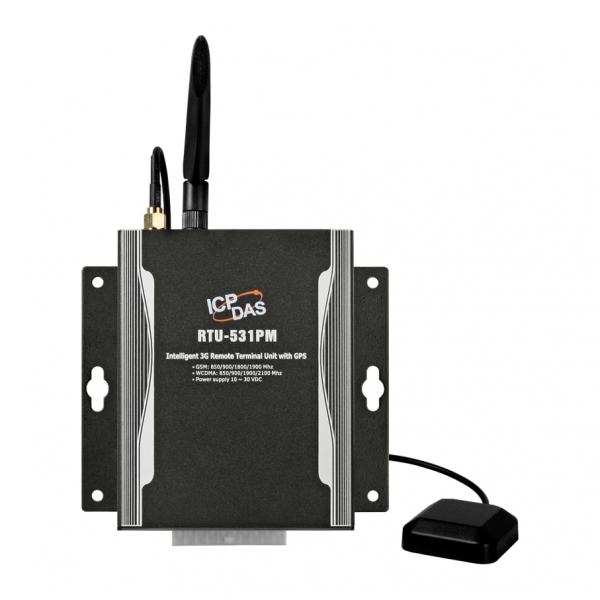

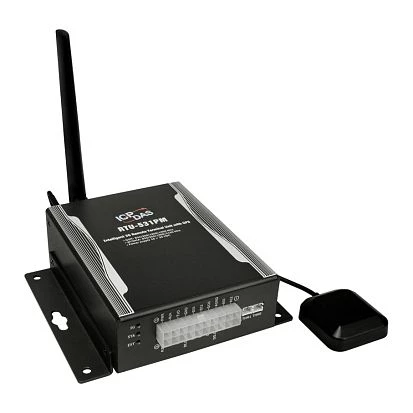

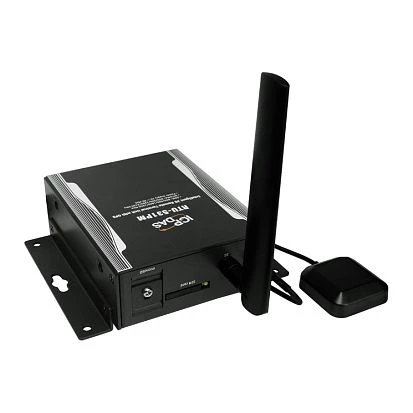

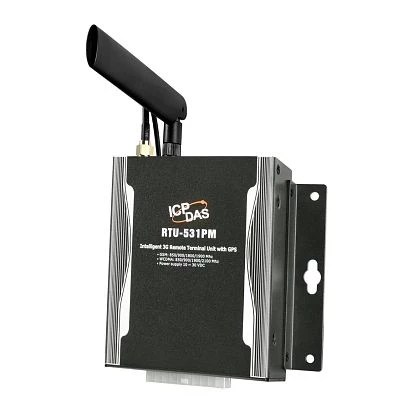

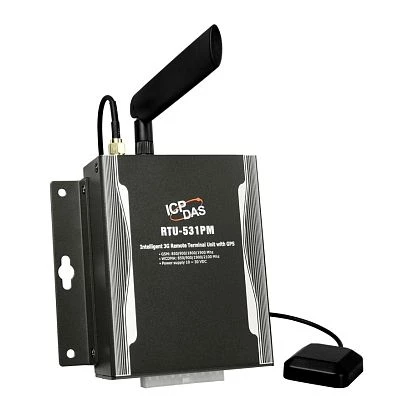

RTU-531PM
ICP DAS
SKU: 08884300
Intelligent 3G Remote Terminal Unit with GPS(RoHS), 32-bit ARM CPU, 1xCOM, 4DI/2DO/4AI/2xThermistor inpit, 2G 850/900/1800/1900 MHz, 3G 850/900/1900/2100 MHz, including CA-TM-P100-L020P
End-of-life product
Interfaces
COM Total
1
RS-485
1
Antenna characteristics
Cellular interfaces
2G, 3G
Extension Slots
SIM Card slots
1
Additional Functions
GPS
GPS
Digital Input
Total channels of digital input
4
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
10..30 V
Power Consumption
2 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
89 mm
Depth
35 mm
Height
124 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
