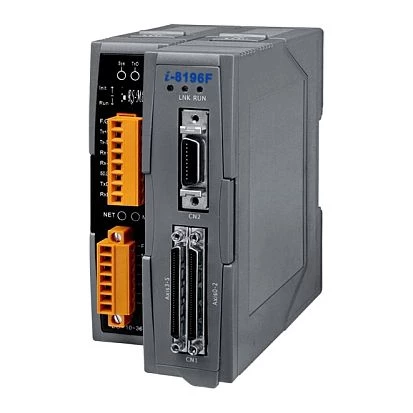

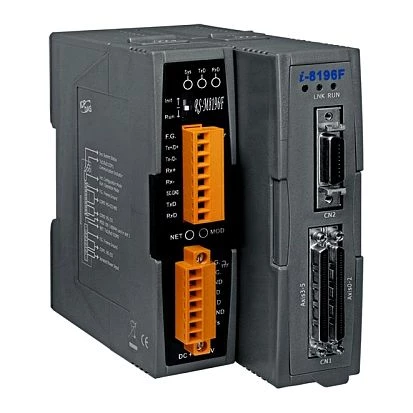

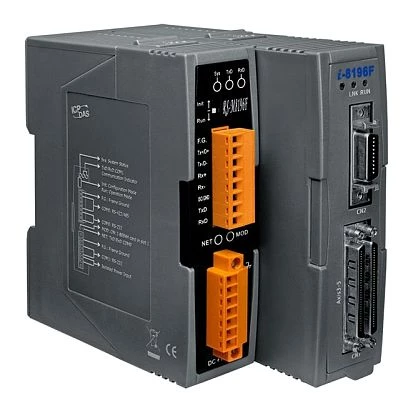

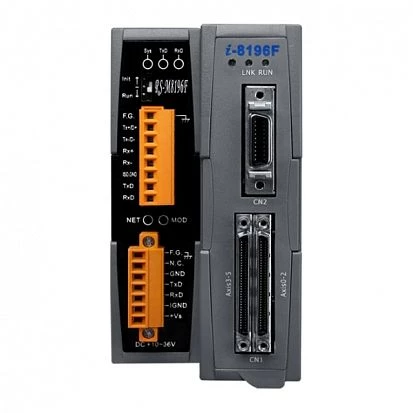

RS-M8196F
ICP DAS
SKU: 08134700
Serial Communication Remote Unit with High-speed 6-axis Motion Control Module, Modbus RTU
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
COM Total
1
RS-232
1
Supported Protocols
Industrial Protocols
Modbus RTU slave
Digital Input
Total channels of digital input
12
Isolation of Digital Input
2500 V
Digital Output
Total channels of digital output
3
Channels
6
Signal Type
A/B, CW/CCW, Pulse/Dir
Output frequency range
0~12 MHz
Connectors
Connectors
68-pin SCSI-II
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
65 mm
Depth
121 mm
Height
125 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
