MN-3254
ICP DAS
SKU: 06626100

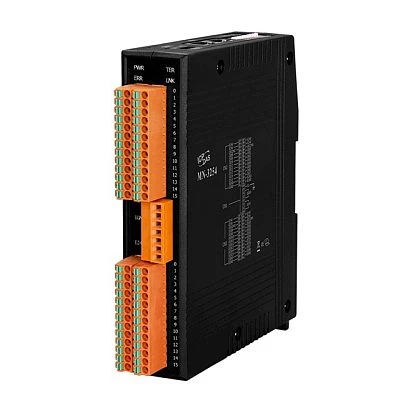

Distributed Motionnet 16-ch Isolated DI, 16-ch Isolated DO Module with RJ-45 Connector (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
Motionnet slave
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Source
Isolation of Digital Input
3000 V
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
0~30 V
Max. load current
200 mA
Connectors
Connectors
2xRJ45, Screw Terminal
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
31 mm
Depth
126.6 mm
Height
140 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.35 kg
