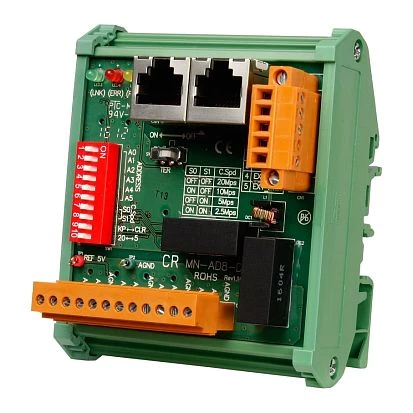

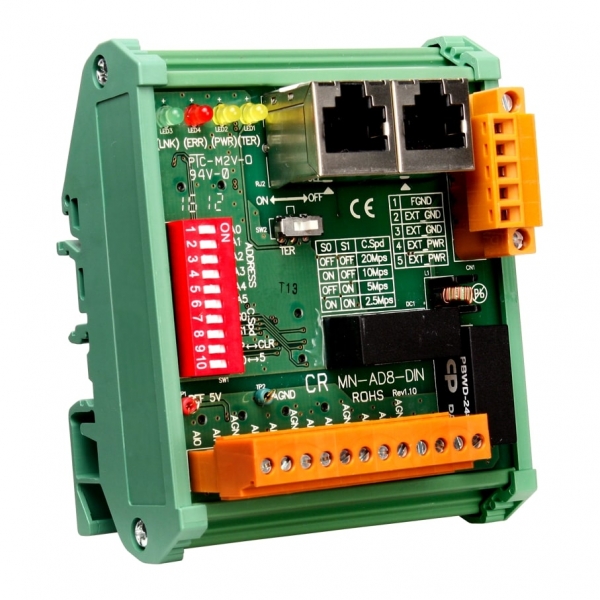

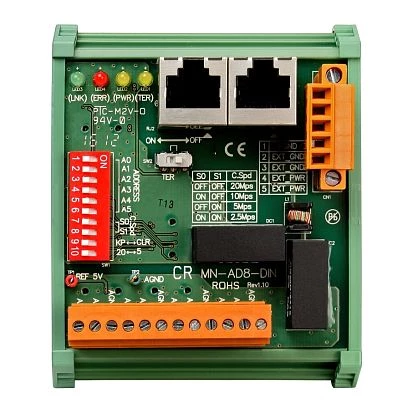

MN-AD8-DIN
ICP DAS
SKU: 08761500
Distributed Motionnet 8-ch AI Module
Price on request
Available
Available
Construction
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Motionnet slave
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-10 V
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
75 mm
Depth
57 mm
Height
90 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.35 kg
