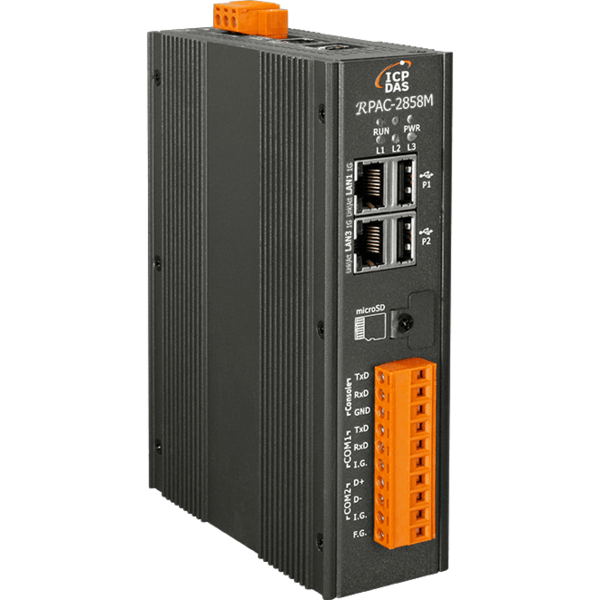

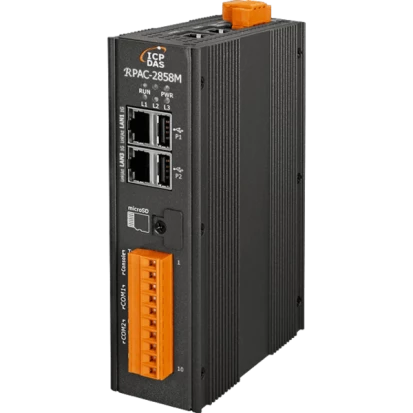

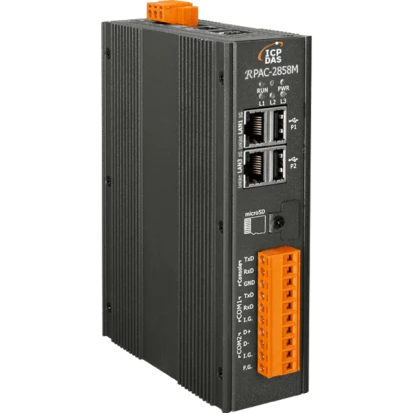

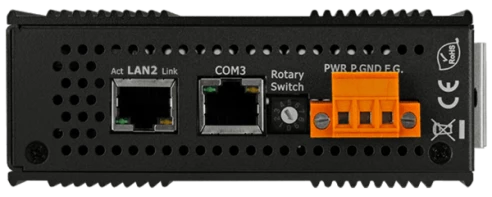

RPAC-2858M
ICP DAS
SKU: 80325900
Win-GRAF PAC, Cortex-A53 CPU 1.6 GHz, 2GB LPDDR4 RAM, 8GB eMMC Flash, 4GB microSD, 2xRS-232, 1xRS-485 (2500 VDC Isolated), 1xRS-422 (2500 VDC Isolated), 3x10/100/1000Base-TX, 2xUSB, 12..48VDC, Linux Kernel 4.14.78, Operating Temperature -25..70 C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
CPU
Processor Installed
ARM Cortex-A53
Max CPU frequency
1.6 GHz
Memory
Default on Board Memory
2 GB
Installed drive
Flash Memory Capacity
8 MB
MRAM Memory Capacity
128 kB
Software
Operating System Installed
Linux OS
Programming Method
IEC 61131-3
Ethernet
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232
2
RS-422
1
RS-485
1
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON slave
Security Protocols
SSH
Dimensions and weight
Width
42 mm
Depth
129 mm
Height
164 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
