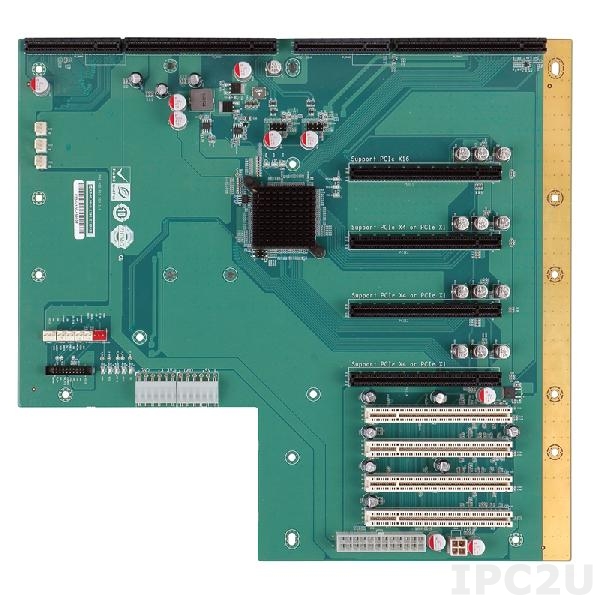

9-Slot PICMG 1.3 Backplane,1 PCIe x16 w/ x16 slots,3 PCIe x4 w/ x16 slots,4 PCI (Mounting holes compatible with PCI-14S)

End-of-life product

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

9

PCI Express x16

1

PCI Express x4

3

PICMG

1

PCI

4

Dimensions and weight

Width

327.2 mm

Depth

311.2 mm

Dimensions

Net Weight

0.73 kg

Gross Weight

0.73 kg

Documentation

Request for replacement

SKU: 06495900

PXE-9S2
