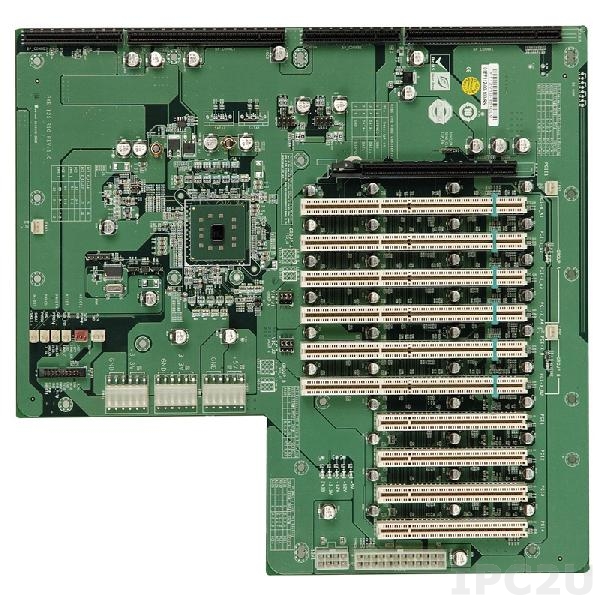

PXE-12S-R10

PXE-12S-R10

IEI
SKU: 06393800
1xPICMG, 1xPCI-Express x16, 6xPCI-X, 4xPCI Slots PICMG 1.3 Passive Backplane
End-of-life product

Backplane
Form Factor
PICMG 1.3 Passive Backplane
Extension Slots
Total
12
PCI Express x16
1
PICMG
1
PCI
4
PCI-X
6
Dimensions and weight
Width
311.2 mm
Depth
327.2 mm
Dimensions
Gross Weight
0.6 kg
