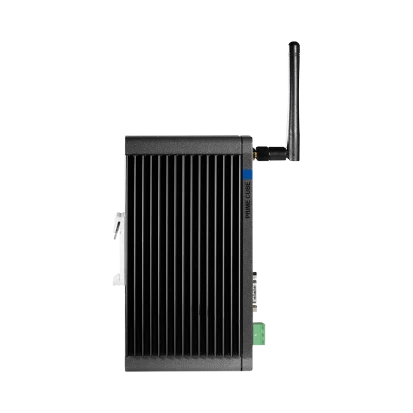

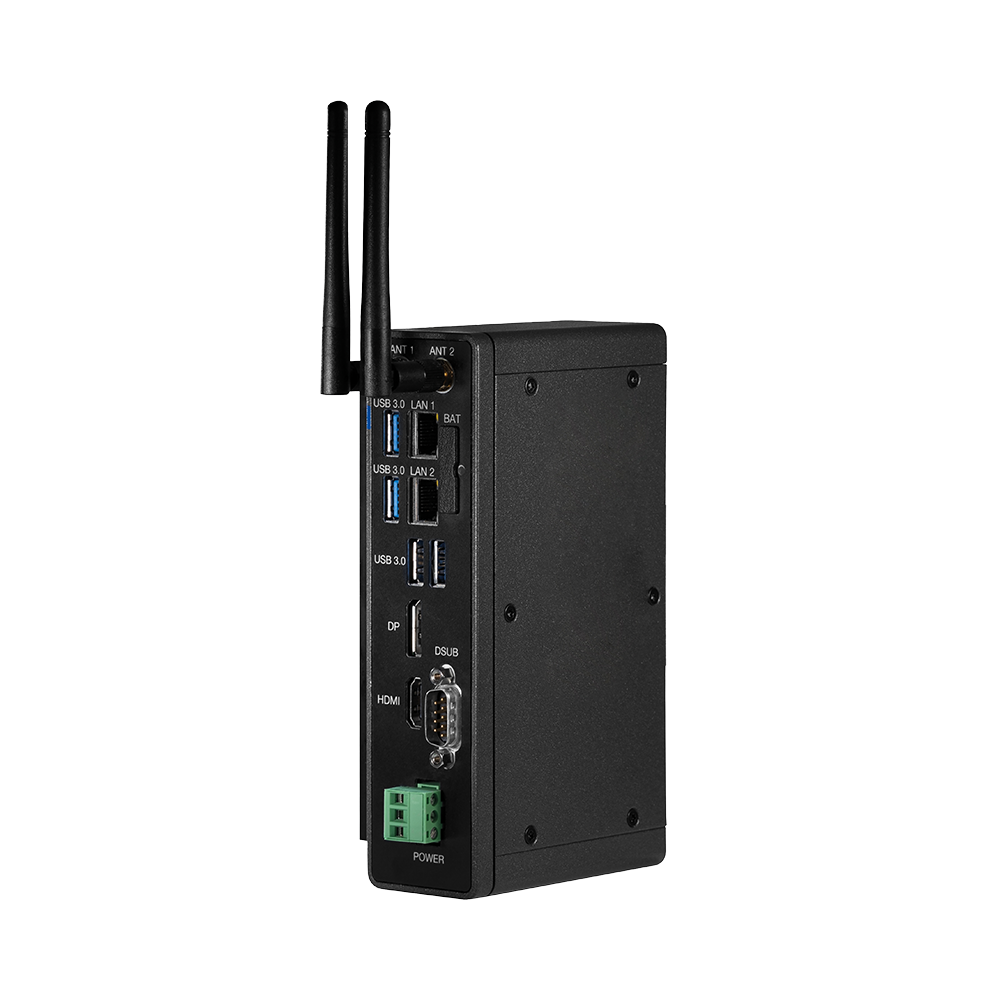

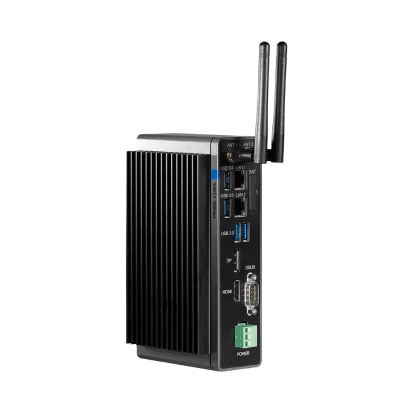

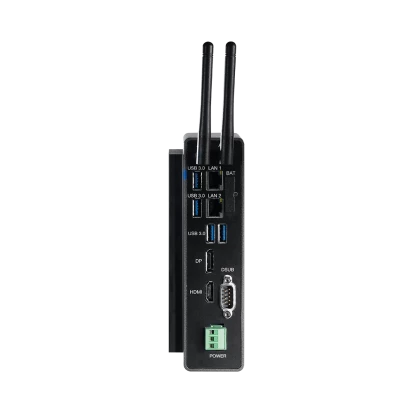

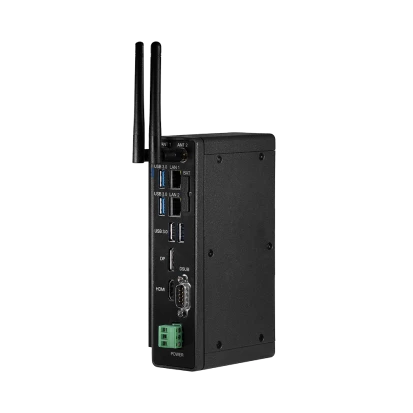

Prime-Box-Pico--C
Schubert System Elektronik
SKU: 80103700
Prime Box Pico Embedded System, Wall- & Din-Rail (option), Intel Atom x7-E3950, 4GB DDR3L, HDMI, DP, 2xGbE LAN, 4x USB, 1xRS232/422/485, 24V (12..32) DC-in, 3-Jahre Garantie, PBI1100ED_044
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..32 V
Power Consumption
31.2 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
170 mm
Height
55 mm
Depth
92.3 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2
EMI
EN 55024, en_55032
Safety
CSA, UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.15 kg
Gross Weight
4.9 kg
