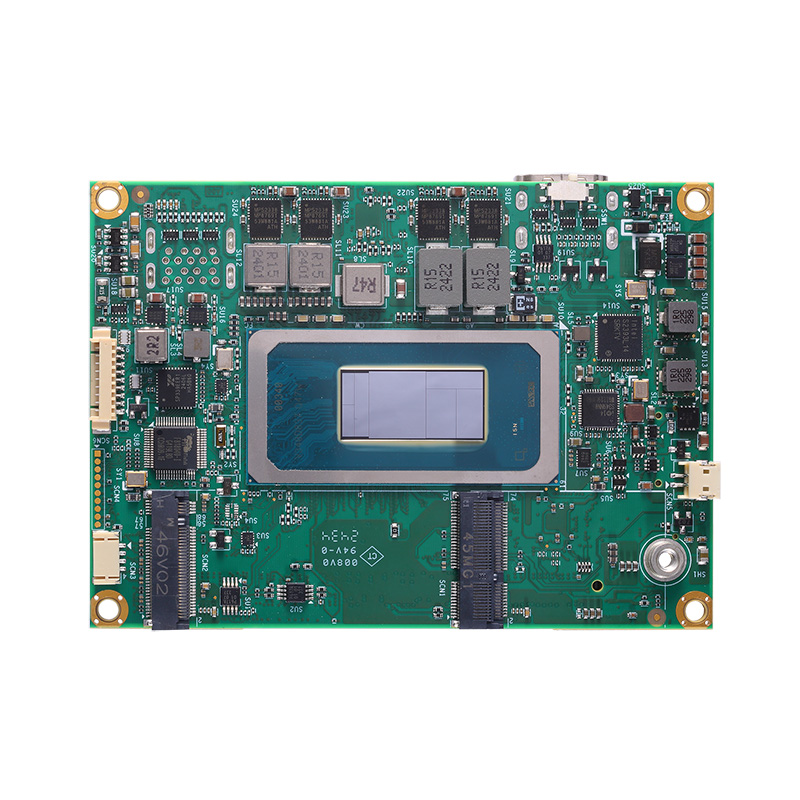

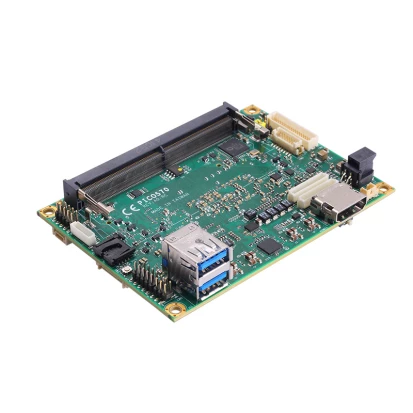

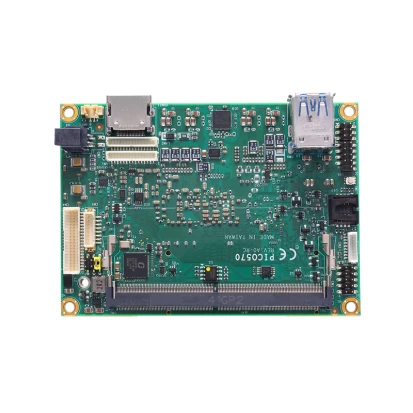

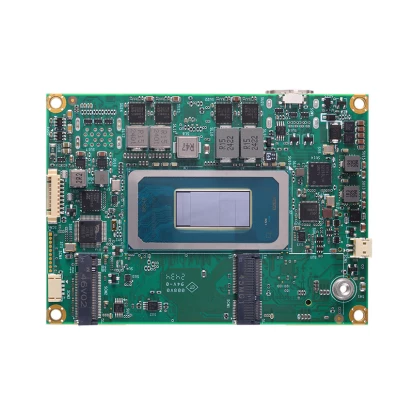

PICO570-U7
AXIOMTEK
SKU: 80226500
Pico-ITX Mainboard, Intel Core Ultra 7 155U CPU, Up to 48GB DDR5 RAM, HDMI, LVDS, 1xGbE LAN, 1x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xCOM, 8-bit DIO, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, Audio, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
PICO-ITX
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 7 155U
Socket
FCBGA2049
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
48 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
4
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, USB 2.0, 40-pin LVDS, 16-pin LAN
Connectors
HDMI, 2xUSB, DC Input
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
