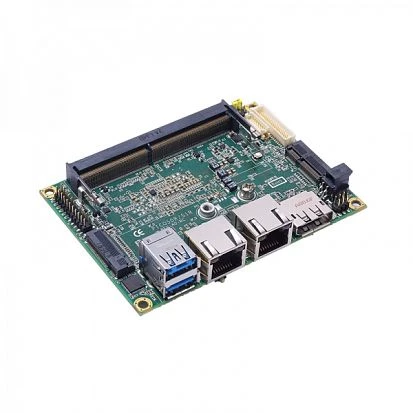

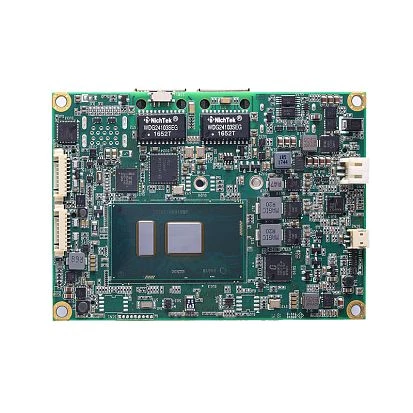

PICO50RPGG-Celeron-3955U
AXIOMTEK
SKU: 08563300
Pico-ITX Mainboard with Intel Celeron 3955U with DDR4, DP/LVDS, 2xGbE LAN, 2xCOM, 2xUSB 2.0, 2xUSB 3.0, SATA-600, M.2 Key B, M.2 Key E, DIO, SMBus, Audio, -20...+60C
Price on request
Available on order
Available on order
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Celeron 3955U
Socket
CPU onboard
Max CPU frequency
2 GHz
Number of CPU
1
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
4
Extension Slots
Total
1
M.2
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
2xRJ45 Ethernet, 2xUSB, Display Port
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.26 kg
Gross Weight
0.26 kg
