PICO316HGA-N3350 60C
AXIOMTEK
SKU: 09260800

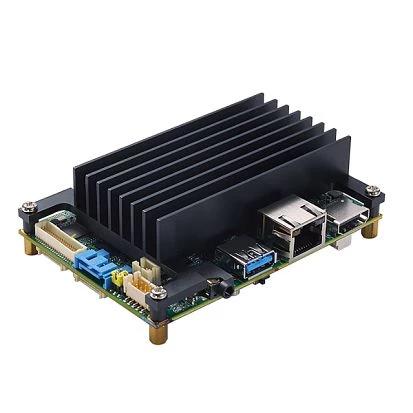

Pico-ITX SBC, Intel Celeron N3350,1x204-pin DDR3L-1867 SO-DIMM, HDMI/LVDS, GbE LAN, 2xRS-232, 3xUSB 3.0, 2xUSB 2.0, SMBus, I2C, PCIe Mini, mSATA, SATA-600, -20...+60C, with heatsink
Price on request
Available on order
Available on order
System Architecture
Form Factor
2.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
5
USB 2.0
2
USB v3.x
3
Drive interfaces
SATA 3
1
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
COM, 2xUSB 2.0, USB 3.0
Connectors
HDMI, RJ45, 1xUSB
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.36 kg
Gross Weight
0.36 kg
