PCOM-C700

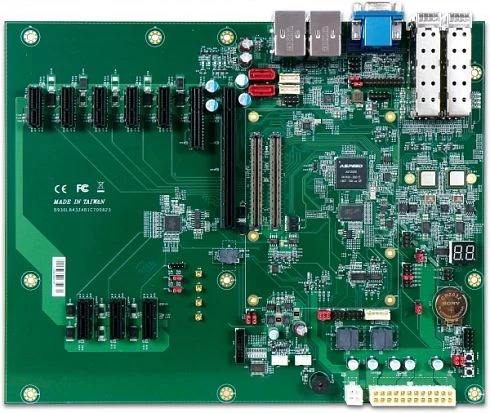

PCOM-C700

Portwell
SKU: 08300600
ATX Form Factor Evaluation Carrier Board for COM Express rev 3.0 Type 7 Module with VGA over BNC, 4x 10 GbE via SFP+ 1x GbE, 1x PCIe x4, 6x PCIe x1, 4x USB 3.0, 4x USB 2.0, GPIO
Price on request
Available
Available

System Architecture
Form Factor
ATX
Construction
Type
Fanless
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
10 Gbit/s
4
Interfaces
USB Total
4
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
10
PCI Express x16
1
PCI Express x4
1
PCI Express x1
8
Connectors
Connectors
DB15 VGA, RJ45, 4xUSB
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-40..80 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.5 kg
