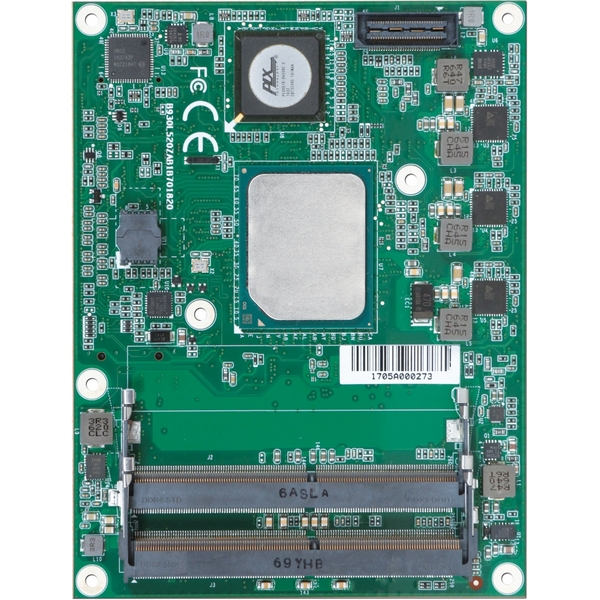

PCOM-B701G-C3308

PCOM-B701G-C3308

Portwell
SKU: 08035400
Based Type 7 COM Express module with Intel Atom C3308 2.1GHz, Up to 48GB DDR4-2133 ECC/Non-ECC SDRAM SO-DIMM, 2xSATA III, 4xKR(10GbE LAN), 4xUSB 3.0/2.0, 1xPCIe x8, 12xPCIe x1, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom C3308
Socket
CPU onboard
Max CPU frequency
2.1 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
3xSODIMM
ECC
Yes
Maximum Memory
48 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
5
10/100/1000 Mbit/s
1
10 Gbit/s
4
Interfaces
USB Total
4
USB v3.x
4
Extension Slots
PCI Express x8
1
PCI Express x1
12
Software
Operating System Compatibility
Windows 7, Windows 8, Linux OS, Windows 8.1, Windows 10
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
