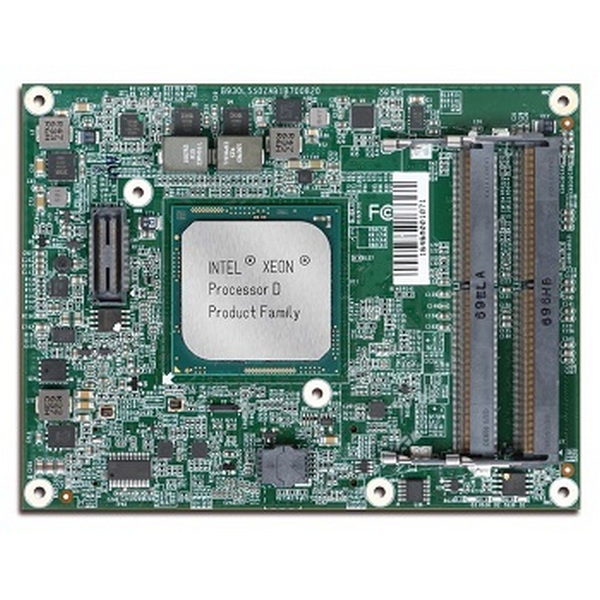

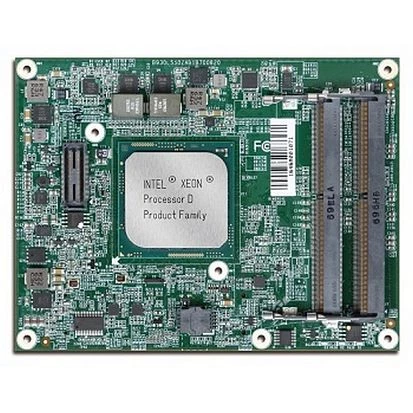

PCOM-B700G-D1548

PCOM-B700G-D1548

Portwell
SKU: 07935300
Based Type 7 COM Express module with Intel Xeon D-1548 2.0GHz, Up to 48GB DDR4-2133 ECC/Non-ECC SDRAM SO-DIMM, 2xSATA III, 2xKR(10GbE LAN), 1xGbE LAN, 4xUSB 3.0/2.0, 1xPCIe x4, 8xPCIe x1, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel Xeon D-1548
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
3xSODIMM
ECC
Yes
Maximum Memory
48 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
3
10/100/1000 Mbit/s
1
10 Gbit/s
2
Interfaces
COM Total
2
USB Total
8
USB 2.0
4
USB v3.x
4
Extension Slots
PCI Express x16
1
PCI Express x4
1
PCI Express x1
8
Software
Operating System Compatibility
Windows 7, Windows 8, Linux OS, Windows 8.1, Windows 10
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
