PCOM-B639VG-6100E

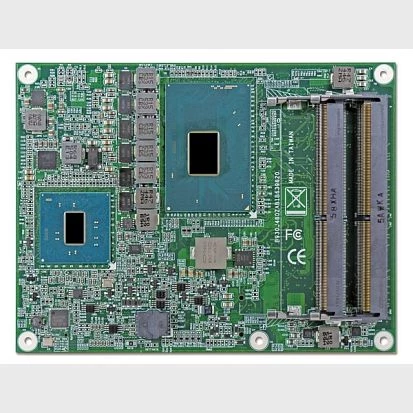

PCOM-B639VG-6100E

Portwell
SKU: 07840900
Type 6 COM Express module with Intel Skylake-H CM236 i3-6100E 2.7GHz, DDR4, VGA, LVDS/eDP, 2x DDI (DP/HDMI/DVI), COM, GB LAN, 8xUSB 2.0, 4xUSB 3.0, 4xSATA 6Gb/s, 8x PCI-Express x1, 1x PCI-Express x16, I2C, SMBus, TPM, LPC, UART
Price on request
Available
Available

System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel i3-6100E
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel CM236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Assembly
Removable
Graphic
Graphic Controller
Intel HD 530 graphics
Interfaces
DisplayPort, LVDS, VGA, 2xDDI
Ethernet
Controller Type
Intel i219-LM
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
12
USB 2.0
8
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x16
1
PCI Express x1
8
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel i3-6100E
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel CM236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Assembly
Removable
Graphic
Graphic Controller
Intel HD 530 graphics
Interfaces
DisplayPort, LVDS, VGA, 2xDDI
Ethernet
Controller Type
Intel i219-LM
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
12
USB 2.0
8
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x16
1
PCI Express x1
8
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel i3-6100E
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel CM236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Assembly
Removable
Graphic
Graphic Controller
Intel HD 530 graphics
Interfaces
DisplayPort, LVDS, VGA, 2xDDI
Ethernet
Controller Type
Intel i219-LM
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
12
USB 2.0
8
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x16
1
PCI Express x1
8
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel i3-6100E
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel CM236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Assembly
Removable
Graphic
Graphic Controller
Intel HD 530 graphics
Interfaces
DisplayPort, LVDS, VGA, 2xDDI
Ethernet
Controller Type
Intel i219-LM
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
12
USB 2.0
8
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x16
1
PCI Express x1
8
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg

Documentation
Datasheet PCOM-B639VG
Documentation
Datasheet PCOM-B639VG
Documentation
Datasheet PCOM-B639VG
Documentation
Datasheet PCOM-B639VG
