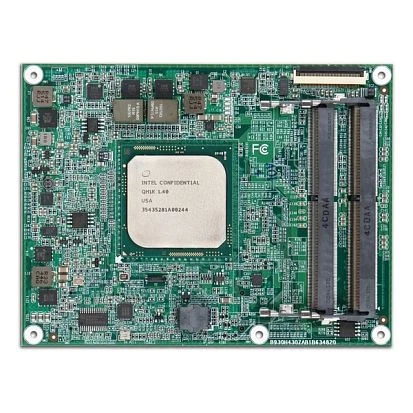

PCOM-B634VG-D-1577

PCOM-B634VG-D-1577

Portwell
SKU: 08310600
Basic Type 6 COM Express 2.0 module with Intel Broadwell-DE D-1577 1.5GHz, DDR4 2400 SO-DIMM, VGA, HDMI, 2xLVDS/eDP, 2x 10GbE, 7xUSB 2.0, 4xUSB 3.0, 4xSATA Gen 3.0, 8xPCIe x1, 1xPCIE x16, Audio
Price on request
Available
Available

System Architecture
Form Factor
COM Express CPU Module
CPU
Processor Installed
Intel Xeon D-1577
Socket
CPU onboard
Max CPU frequency
2.1 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
3xSODIMM
ECC
Yes
Maximum Memory
48 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps
Total Ethernet
3
10/100/1000 Mbit/s
1
10 Gbit/s
2
Interfaces
COM Total
2
USB 2.0
7
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Extension Slots
Total
9
PCI Express x16
1
PCI Express x1
8
Additional Functions
Watchdog timer type
Hardware
Software
Operating System Compatibility
Windows 7, Linux OS
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
