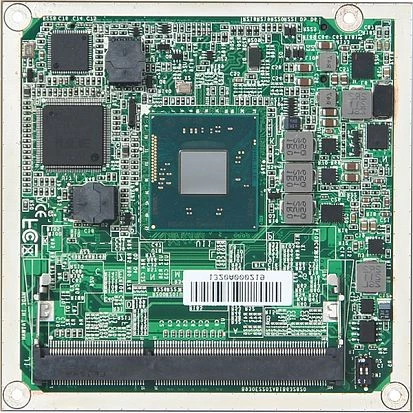

PCOM-B632VG-E3825

PCOM-B632VG-E3825

Portwell
SKU: 07944900
Based Type 6 COM Express module with Intel Bay Trail-I E3825 1.33GHz, DDR3L SDRAM, VGA, LVDS/eDP, DP, Gigabit Ethernet, 2xCOM, 6xUSB 3.0, 1xUSB 3.0, 1xSATA 2.0, MicroSD, PCI-Express x4
Price on request
Available
Available

System Architecture
Form Factor
COM Express Compact
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E3825
Socket
CPU onboard
Max CPU frequency
1.33 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, VGA
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
USB 2.0
6
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
MicroSD
1
Extension Slots
PCI Express x1
4
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..80 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
