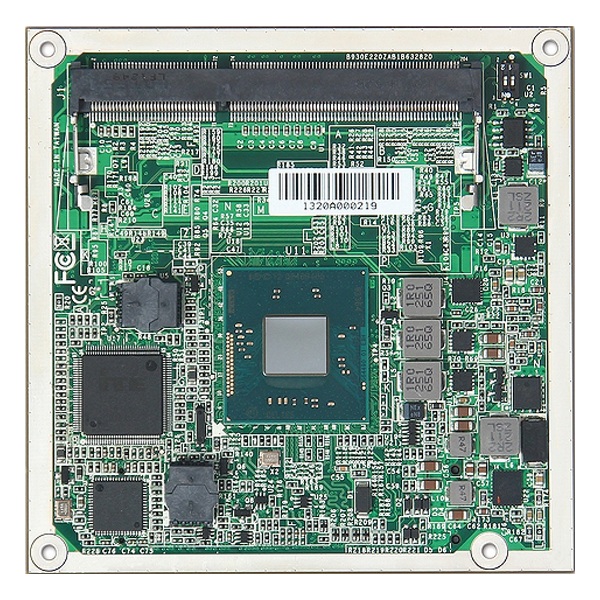

PCOM-B632VG-E3815

PCOM-B632VG-E3815

Portwell
SKU: 08309000
Based Type 6 COM Express module with Intel Bay Trail-I E3815 1.46GHz, DDR3L SDRAM, VGA, LVDS/eDP, DP, Gigabit Ethernet, 2xCOM, 6xUSB 3.0, 1xUSB 3.0, 1xSATA 2.0, MicroSD, PCI-Express x4
Price on request
Available
Available

System Architecture
Form Factor
COM Express CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E3815
Socket
CPU onboard
Max CPU frequency
1.46 GHz
Number of CPU
1
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
DisplayPort, DVI, LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
USB 2.0
4
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
MicroSD
1
Extension Slots
Total
4
PCI Express x4
1
PCI Express x1
3
Additional Functions
Watchdog timer type
Hardware
Software
Operating System Compatibility
Windows 7, Linux OS
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
