PBPE-07P4

PBPE-07P4

SKU: 05320700

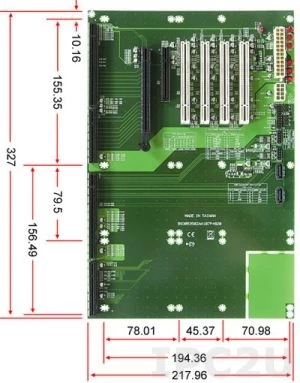

PICMG 1.3 Backplane, 1xPICMG, 1xPCI-Express x16, 1xPCI-Express x4, 4xPCI Slots

Price on request

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

7

PCI Express x16

1

PCI Express x4

1

PICMG

1

PCI

4

Dimensions and weight

Width

218 mm

Depth

327 mm

Dimensions

Gross Weight

0.3 kg

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

7

PCI Express x16

1

PCI Express x4

1

PICMG

1

PCI

4

Dimensions and weight

Width

218 mm

Depth

327 mm

Dimensions

Gross Weight

0.3 kg

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

7

PCI Express x16

1

PCI Express x4

1

PICMG

1

PCI

4

Dimensions and weight

Width

218 mm

Depth

327 mm

Dimensions

Gross Weight

0.3 kg

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

7

PCI Express x16

1

PCI Express x4

1

PICMG

1

PCI

4

Dimensions and weight

Width

218 mm

Depth

327 mm

Dimensions

Gross Weight

0.3 kg
