PBPE-06V464

PBPE-06V464

SKU: 03681400

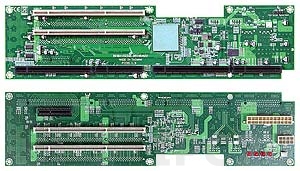

2U Vertical PICMG 1.3 Backplane, 1xPICMG, 4xPCI-X, 1xPCI-Express x4 Slots

End-of-life product

244,59 €

archive price

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

6

PCI Express x4

1

PICMG

1

PCI-X

4

Dimensions and weight

Width

84 mm

Depth

332 mm

Dimensions

Gross Weight

0.3 kg
