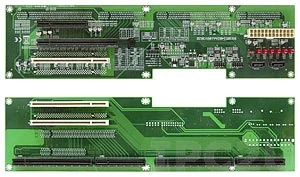

PBPE-06V3

PBPE-06V3

Portwell
SKU: 05142600
2U Vertical PICMG 1.3 Backplane, 1xPICMG, 1xPCI-Express x16, 1xPCI-Express x4, 3xPCI Slots, 12V max
Price on request
Available
Available

Backplane
Form Factor
PICMG 1.3 Passive Backplane
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
1
PICMG
1
PCI
3
Dimensions and weight
Width
84 mm
Depth
332 mm
Dimensions
Gross Weight
0.3 kg
