PBE-1705-F1

PBE-1705-F1

Arbor
SKU: 57962600

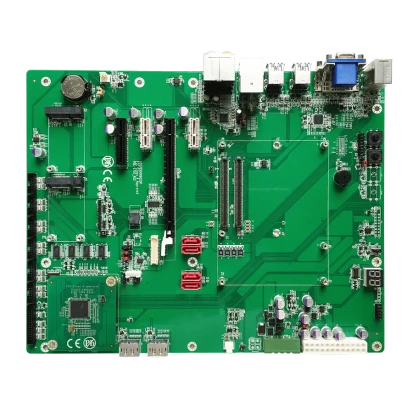

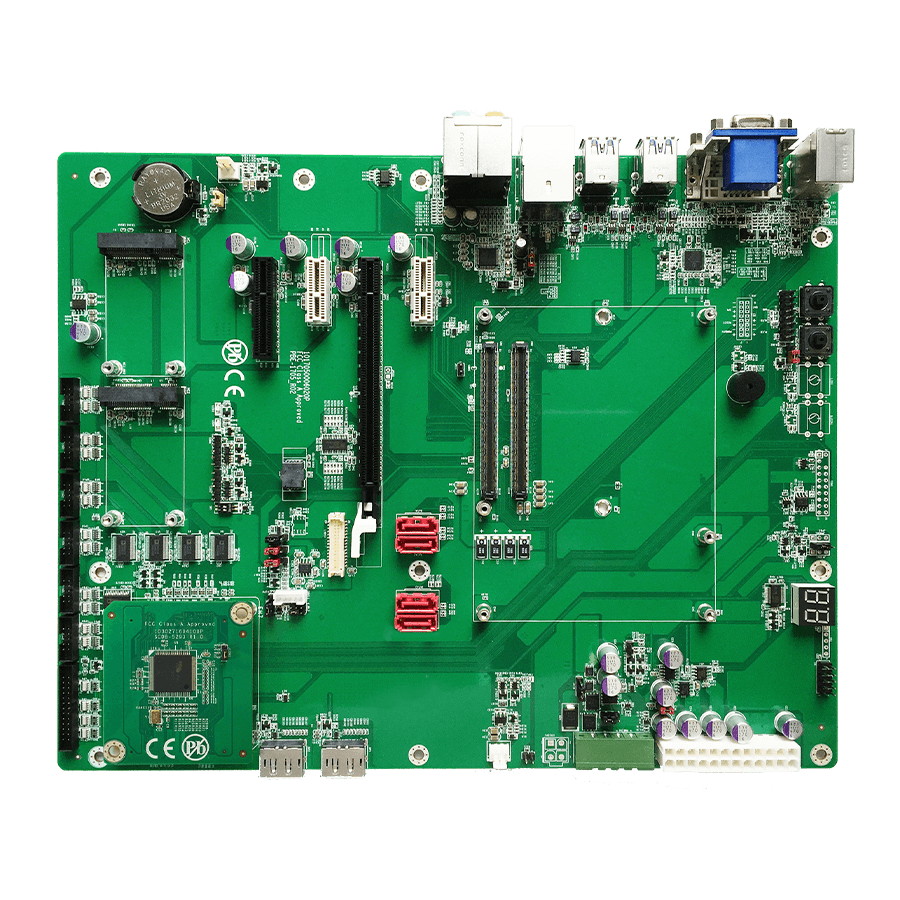

Base Board for COM Express Type 6 Module, Fintek F71869 Super IO, Up to 6xCOM, Up to 2xUltra COM, 2xUSB 2.0, Up to 4xUSB 3.0, 1xKB/MS, 1xRJ45, 8-bit DIO, Audio, 4xSATA, 1xPCIe x16, 1xPCIe x4, 2xPCIe x1, 2xMini-Card, 5-20VDC-in, -40..85C
Price on request
Available
Available

System Architecture
Form Factor
ATX
Graphic
Interfaces
DVI, LVDS, VGA, DDI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
8
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
4
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
1
PCI Express x1
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, RJ45 Ethernet, 6xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
1 kg
Gross Weight
1.4 kg
System Architecture
Form Factor
ATX
Graphic
Interfaces
DVI, LVDS, VGA, DDI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
8
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
4
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
1
PCI Express x1
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, RJ45 Ethernet, 6xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
1 kg
Gross Weight
1.4 kg
System Architecture
Form Factor
ATX
Graphic
Interfaces
DVI, LVDS, VGA, DDI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
8
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
4
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
1
PCI Express x1
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, RJ45 Ethernet, 6xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
1 kg
Gross Weight
1.4 kg
System Architecture
Form Factor
ATX
Graphic
Interfaces
DVI, LVDS, VGA, DDI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
8
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
4
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
1
PCI Express x1
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, RJ45 Ethernet, 6xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
1 kg
Gross Weight
1.4 kg

Documentation
PBE-1705-F1-Datasheet.pdf
Documentation
PBE-1705-F1-Datasheet.pdf
Documentation
PBE-1705-F1-Datasheet.pdf
Documentation
PBE-1705-F1-Datasheet.pdf

Get a Quote

Arbor
SKU: 57962600
