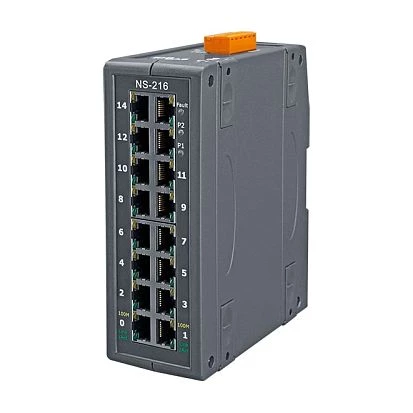

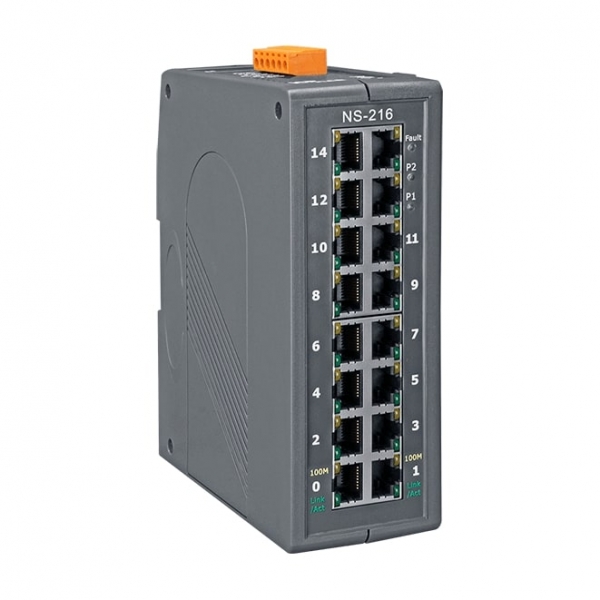

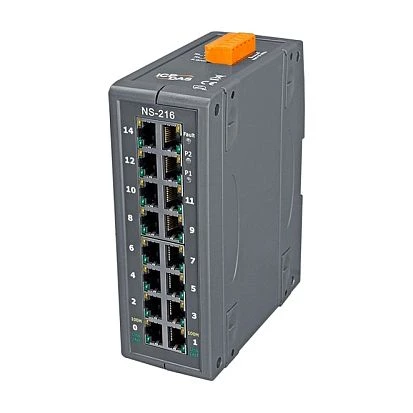

NS-216
ICP DAS
SKU: 09001600
Unmanaged 16-port Industrial 10/100 Base-TX Ethernet Switch (RoHS)
136,50 €
Price excl. VAT and shipping cost
Available
Available
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
16000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@30V DC

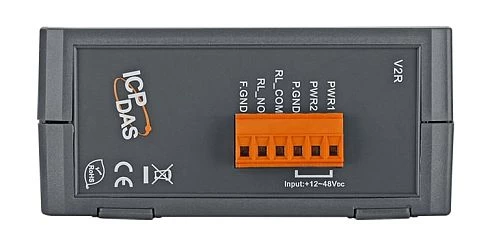

System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
56 mm
Depth
127 mm
Height
171 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.47 kg
Gross Weight
0.64 kg
