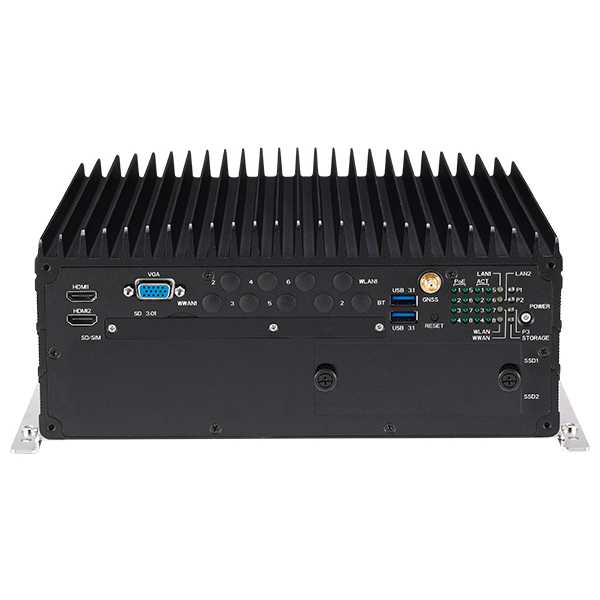

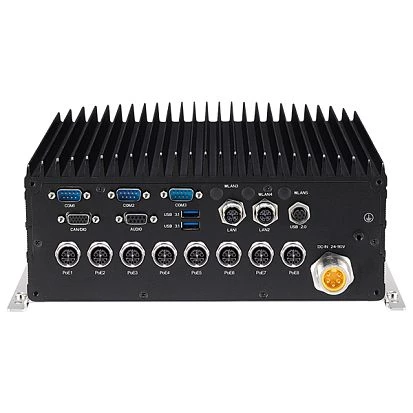

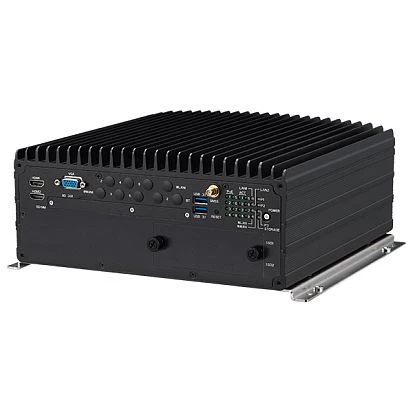

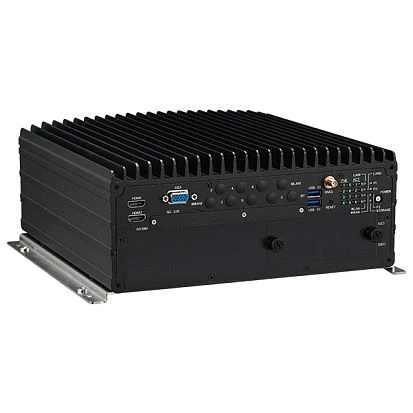

nROK-7252-WI2-C8S
NEXCOM
SKU: 09140000
Embedded Railway Fanless PC Intel Core i7/i5/i3,Xeon 9,8th gen, 2xDDR4, VGA, 2xHDMI, 8xM12 PoE 802.3af/at, 2xM12 GbE, M12(2xUSB2.0), 2xUSB-A, DB15(CAN/DIO), DB9(audio), 3xCOM, U-blox M8N, 6xSIM, 2x2.5 SATA, 3xmPCIe, 2xM.2, SD, 24V/110VDC-in, -40..70C
Price on request
Available
Available
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel C246
Memory
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps, Intel i219
Total Ethernet
10
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
5
USB 2.0
1
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
RAID Levels
1, 5, 10
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
M.2
2
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 6
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, DB15 VGA, 2xHDMI, 4xUSB, Mic In, DB15 GPIO, M12 USB, 2xLine Out, 10xM12
System Power Input
Input Voltage DC
24..110 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
260 mm
Height
110 mm
Depth
266 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Shock
Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-3-2
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Rolling Stock
EN 50155
Vibration And Shock
IEC 61373
Dimensions
Net Weight
7.6 kg
Gross Weight
8.8 kg
