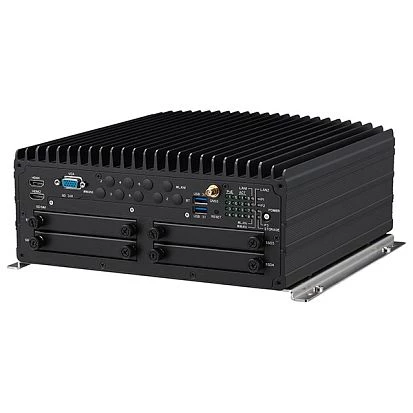

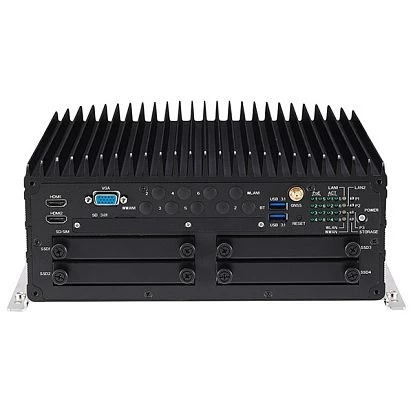

nROK-7252-AC8S
NEXCOM
SKU: 09081800
Embedded Railway Fanless PC, Intel Core i7/i5/i3,Xeon 9,8th gen, 2xDDR4, VGA, 2xHDMI, 8xM12 PoE 802.3af/at, 2xM12 GbE, M12(2xUSB2.0), 2xUSB-A, DB15(CAN/DIO), DB9(audio), 3xCOM, U-blox M8N, 6xSIM, 4x2.5 SATA, 3xmPCIe, 2xM.2, SD, 24V/36VDC-in, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Xeon
Chipset
Chipset
Intel C246
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Audio
Audio Controller
Intel HD Audio
Drive interfaces
RAID Levels
1, 5, 10
mSATA
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
5
M.2
2
Mini-PCIe/Mini Card
3
SIM Card slots
Full size Sim-card, 6
Antenna characteristics
Cellular interfaces
3G
Additional Functions
GPS
GPS
Connectors
Connectors

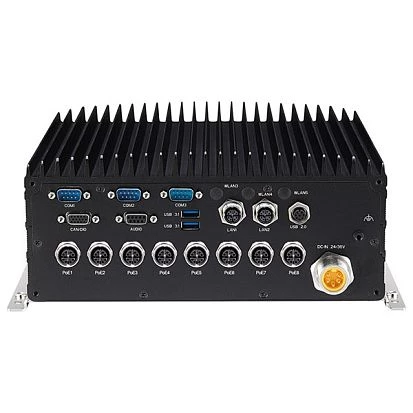

3xDB9, DB15 VGA, 2xHDMI, 4xUSB, 1xDB15 DIO, DB15 CAN Bus, 1xSMA (GPS antenna connector), DB9 Female, 8-pin M12 A-code Male, 2x8-pin M12 X-code Male, M21 DC-in
System Power Input
Input Voltage DC
24..36 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
260 mm
Height
110 mm
Depth
266 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2g @5~500 Hz
Shock
20g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810F Test Method 516.5 Crash Hazard, MIL-STD-810F Test Method 514.5 Highway Truck
Rolling Stock
EN 50155, EN 45545
Automotive
e13 Mark
Dimensions
Net Weight
6.8 kg
Gross Weight
8 kg
