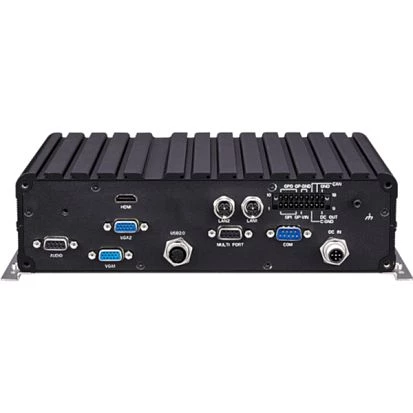

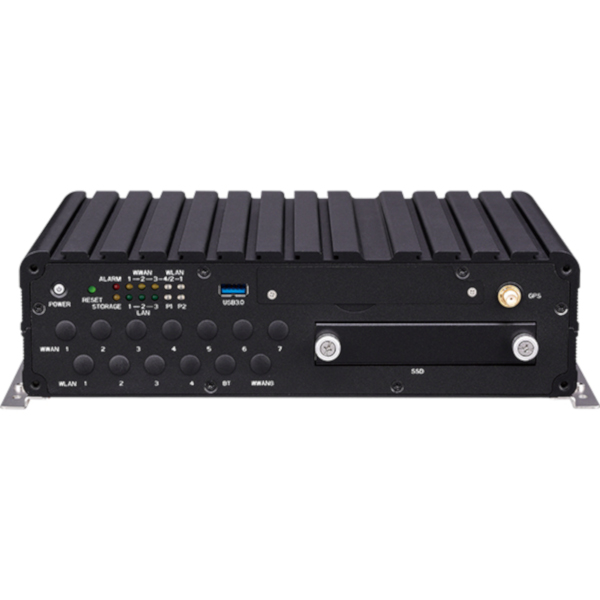

nROK-6221-A
NEXCOM
SKU: 08728500
Embedded Railway computer with Intel Atom x7-E3950, 4GB DDR3L, 2.5" SSD Storage Bay, 2xVGA, HDMI, COM, GPS, CAN-Bus, USB, 3xMiniPCIe, Audio, 24V/36V DC-in
Price on request
Available
Available
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
CPU Support Type
Atom
Max CPU frequency
2 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 505
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
GPIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
5
M.2
2
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 6
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 3xUSB, Mic In, 3xM12, 2xLine Out
System Power Input
Input Voltage DC
9..48 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
260 mm
Height
70 mm
Depth
196 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Shock
Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-3-2
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Rolling Stock
EN 50155
Vibration And Shock
IEC 61373
Dimensions
Net Weight
2.8 kg
Gross Weight
4 kg
