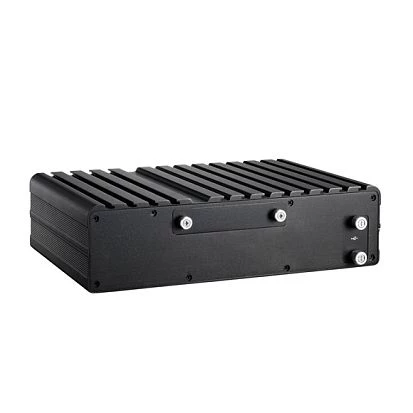

nROK-3000-F

nROK-3000-F

NEXCOM
SKU: 06021800
Embedded Railway Computer, Intel Atom D525 1.8GHz, 1GB DDR3, VGA, 3xLAN (M12 Connector), 1xUSB (M12), 2xUSB, 26-pin with RS232/422/485 and 4 DI /4 DO, Audio, CFast Slot, SIM Card Socket, 2.5" HDD SATA, Mini-PCIe, 110V DC-In Isolated
End-of-life product

Construction
Construction Chassis
Aluminium Chassis
Protection Level of Chassis
IP65
Type
Fanless
CPU
Processor Installed
Intel Atom D525
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Maximum Memory
4 GB
Ethernet
10/100 Mbit/s
3
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
GPS
GPS
Connectors
Connectors
DVI-I, 2xUSB, Mic In, Line Out, DC Input, 4xM12
System Power Input
Input Voltage DC
77 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 2009
Dimensions and weight
Width
260 mm
Height
70 mm
Depth
178 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Rolling Stock
EN 50155, IEC 61373
Vibration And Shock
EN 61373 Category 1 Class B
Dimensions
Gross Weight
10 kg
