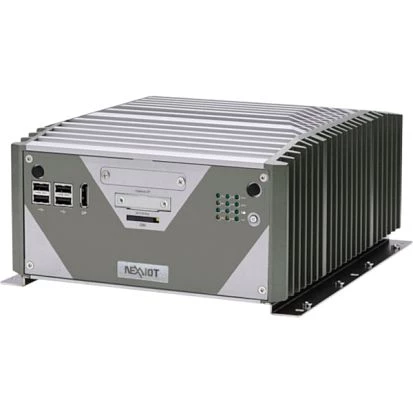

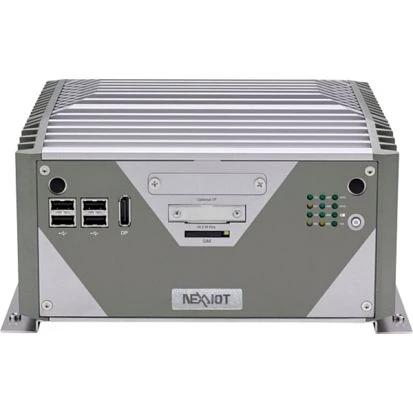

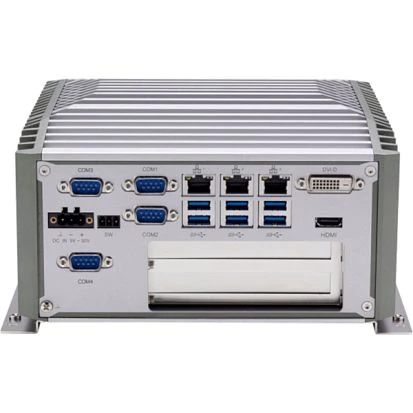

NISE-3900-2Slot--C
NEXCOM
SKU: 80189400
Fanless Box-PC NISE3900xxx Series, Intel Core 9/8th Gen i7/i5/i3 CPUs, 8GB DDR4, 128GB SSD, DP, DVI-D, HDMI, 3xGbit LAN, 4xUSB 2.0, 6xUSB 3.1, 4xCOM, Audio, 1xMini-PCIe, 2xPCIe x4 or 2xPCI or PCIe x4 & PCI Slots, 120W extrenal Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
4
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
PCI
2
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xHDD LED, Power LED, WLAN LED
Controls
On/Off
Connectors
Connectors
4xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 10xUSB, Mic In, Line Out, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
215 mm
Height
272 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
4
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
PCI
2
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xHDD LED, Power LED, WLAN LED
Controls
On/Off
Connectors
Connectors
4xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 10xUSB, Mic In, Line Out, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
215 mm
Height
272 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
4
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
PCI
2
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xHDD LED, Power LED, WLAN LED
Controls
On/Off
Connectors
Connectors
4xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 10xUSB, Mic In, Line Out, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
215 mm
Height
272 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
4
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
PCI
2
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xHDD LED, Power LED, WLAN LED
Controls
On/Off
Connectors
Connectors
4xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 10xUSB, Mic In, Line Out, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
215 mm
Height
272 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
