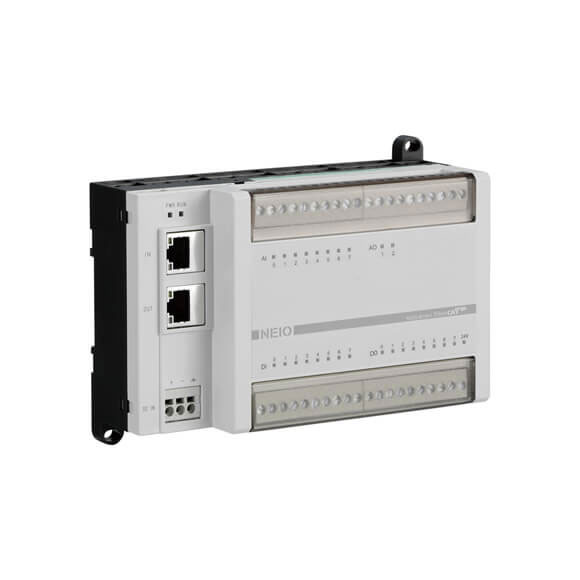

NEIO-B1842
NEXCOM
SKU: 80249300
Industrial EtherCAT slave module, IP20, 4xAI, 2xAO, 8xDI, 8xDO, 2x100Base-TX, 24 VDC-in, Operating Temperature 0..55 C
Price on request
Available
Available
Construction
Construction Chassis
Metal/plastic
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Software
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
4
Number of Bits
16 Bit
Voltage range
+/-10 V
Current range
0...20 mA
Sampling rate
1000 Hz
Differential channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
16 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
8
Level of Logic "1"
9~24 V
Isolation DIO
Yes
Digital Output
Total channels of digital output
8
Type
PNP
Max. load current
500 mA
Dimensions and weight
Width
155 mm
Depth
57.4 mm
Height
115 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.2 kg
