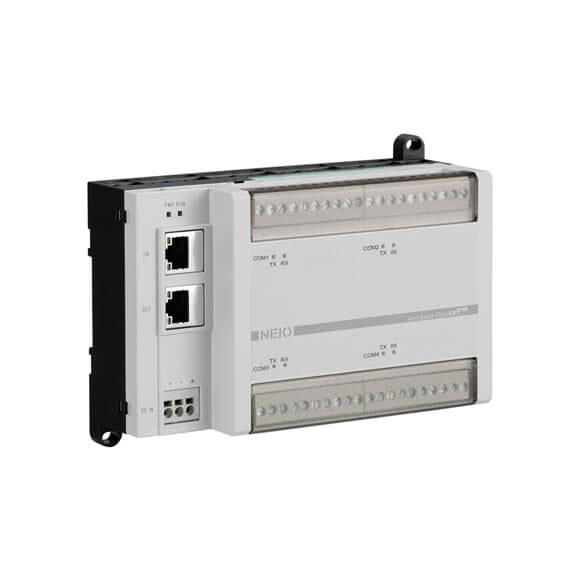

NEIO-B1603
NEXCOM
SKU: 80249400
Industrial EtherCAT slave module, IP20, 1xRS232/422/485, 3xRS422/485, 2x100Base-TX, 24 VDC-in, Operating Temperature 0..55 C
Price on request
Available
Available
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-422/485
3
RS-232/422/485
1
Supported Protocols
Industrial Protocols
EtherCAT
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
155 mm
Depth
115 mm
Height
57.4 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.2 kg
