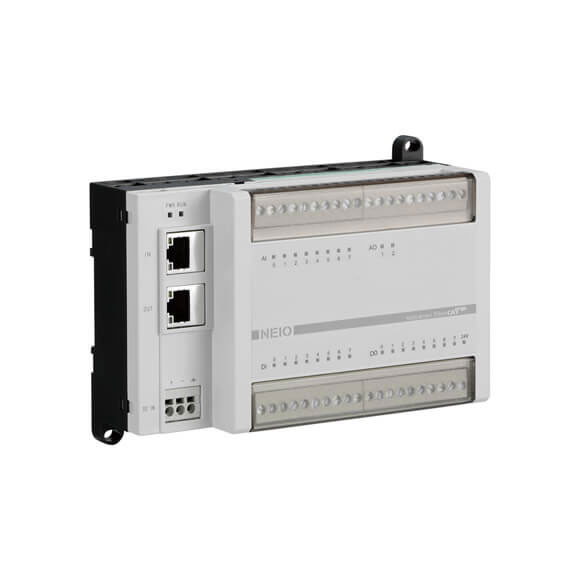

NEIO-B1841
NEXCOM
SKU: 56799800
Industrial EtherCAT slave module, IP20, 8xAI, 2xAO, 8xDI, 8xDO, 2x100Base-TX, 24 VDC-in, Operating Temperature 0..55 C
Price on request
Available
Available
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT
Analog Input
Total channels of analog input
8
Analog Output
Channels of analog input
2
Digital Input
Total channels of digital input
8
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
8
Type
PNP
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
155 mm
Depth
115 mm
Height
57.4 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.2 kg
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT
Analog Input
Total channels of analog input
8
Analog Output
Channels of analog input
2
Digital Input
Total channels of digital input
8
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
8
Type
PNP
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
155 mm
Depth
115 mm
Height
57.4 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.2 kg
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT
Analog Input
Total channels of analog input
8
Analog Output
Channels of analog input
2
Digital Input
Total channels of digital input
8
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
8
Type
PNP
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
155 mm
Depth
115 mm
Height
57.4 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.2 kg
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT
Analog Input
Total channels of analog input
8
Analog Output
Channels of analog input
2
Digital Input
Total channels of digital input
8
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
8
Type
PNP
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
155 mm
Depth
115 mm
Height
57.4 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1 kg
Gross Weight
1.2 kg
