NBP-202A6

NBP-202A6

SKU: 05833300

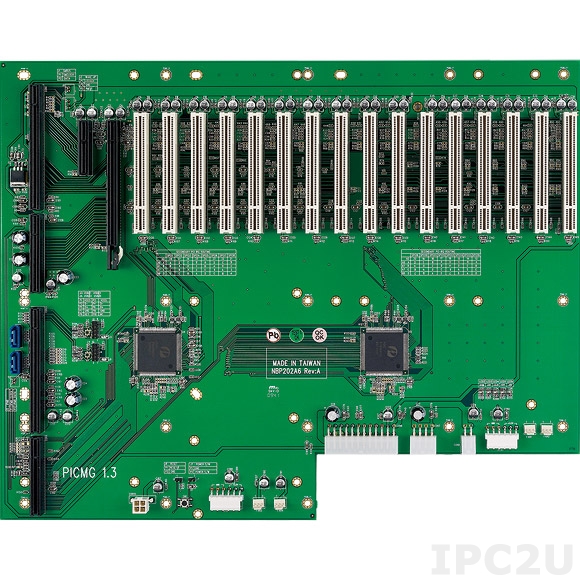

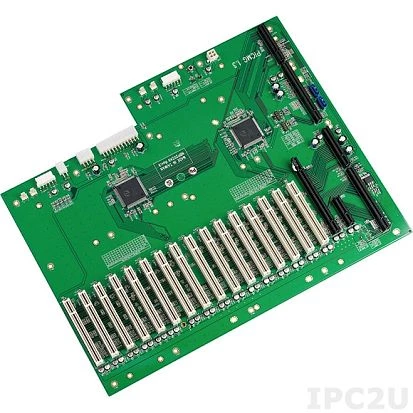

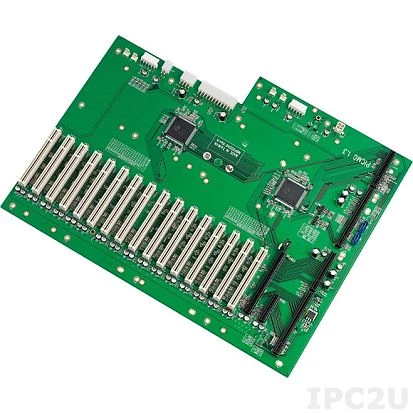

PICMG 1.3 20-slot backplane for 4U/6U chassis w/ 1 SHB slot, 1 PCIex16, 1 PCIex4, 16 PCI slots

End-of-life product

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

19

PCI Express x16

1

PCI Express x4

1

PICMG

1

PCI

16

Dimensions and weight

Width

84 mm

Depth

331 mm

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

1.15 kg

Gross Weight

1.6 kg

Backplane

Form Factor

PICMG 1.3 Passive Backplane

Extension Slots

Total

19

PCI Express x16

1

PCI Express x4

1

PICMG

1

PCI

16

Dimensions and weight

Width

84 mm

Depth

331 mm

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

1.15 kg

Gross Weight

1.6 kg
