NBP-14570

NBP-14570

NEXCOM
SKU: 03177900

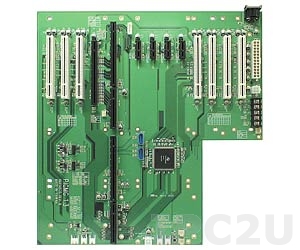

Passive Backplane PICMG 1.3 for 13 Slot Chassis with 1xPICMG, 1xPCI-Express x16, 4xPCI-Express x1, 7xPCI slots
End-of-life product

Backplane
Form Factor
PICMG 1.3 Passive Backplane
Extension Slots
Total
13
PCI Express x16
1
PCI Express x1
4
PICMG
1
PCI
7
Dimensions and weight
Width
328 mm
Depth
317 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
0.81 kg
Backplane
Form Factor
PICMG 1.3 Passive Backplane
Extension Slots
Total
13
PCI Express x16
1
PCI Express x1
4
PICMG
1
PCI
7
Dimensions and weight
Width
328 mm
Depth
317 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
0.81 kg
Backplane
Form Factor
PICMG 1.3 Passive Backplane
Extension Slots
Total
13
PCI Express x16
1
PCI Express x1
4
PICMG
1
PCI
7
Dimensions and weight
Width
328 mm
Depth
317 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
0.81 kg
Backplane
Form Factor
PICMG 1.3 Passive Backplane
Extension Slots
Total
13
PCI Express x16
1
PCI Express x1
4
PICMG
1
PCI
7
Dimensions and weight
Width
328 mm
Depth
317 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
0.81 kg

Documentation
NBP-14570_Datasheet_rev_01
Documentation
NBP-14570_Datasheet_rev_01
Documentation
NBP-14570_Datasheet_rev_01
Documentation
NBP-14570_Datasheet_rev_01

Request for replacement

NEXCOM
SKU: 03177900
NBP-14570
