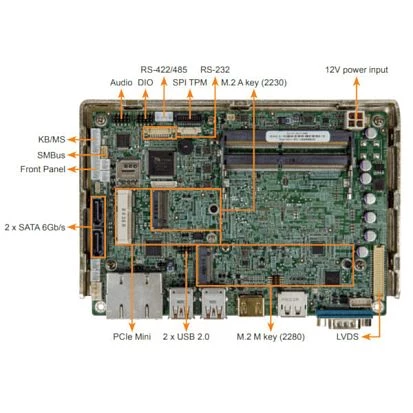

NANO-ULT5-i3
IEI
SKU: 08523300
EPIC SBC supports Intel 14nm 8th Gen Mobile Core i3-8145UE(15W) on-board CPU ( ULT ) with HDMI/LVDS/DP, Dual PCIe GbE, USB 3.1 Gen 2, M.2, mSATA, 1x PCIe Mini Full Size, 2xSATA 6Gb/s,audio
Price on request
Available
Available
System Architecture
Form Factor
EPIC
Construction
Type
Fanless
CPU
Processor Installed
Intel Core i3-8145UE
Socket
CPU onboard
Max CPU frequency
3.9 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel Gen9 Graphic engine
Interfaces
LVDS, HDMI, iDP
Ethernet
Controller Type
Intel i211, Intel i219-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Extension Slots
Total
2
SIM Card slots
1
M.2
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.85 kg
