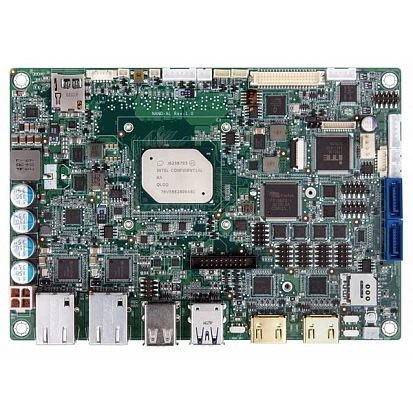

NANO-AL-N1
IEI
SKU: 07857300
EPIC SBC supports Intel 14nm Celeron N3350 2.3GHz on-board SoC with LVDS, 2xHDMI, iDP, , Dual PCIe GbE, M.2, USB 3.0, PCIe Mini, SATA 6Gb/s, COM, Audio and RoHS
Price on request
Available
Available
System Architecture
Form Factor
EPIC
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Number of CPU
1
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, iDP
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC662 HD
Extension Slots
Total
2
SIM Card slots
1
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

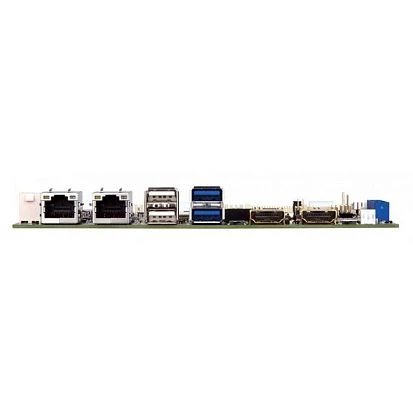

2xHDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
