NANO-ULT3-i5

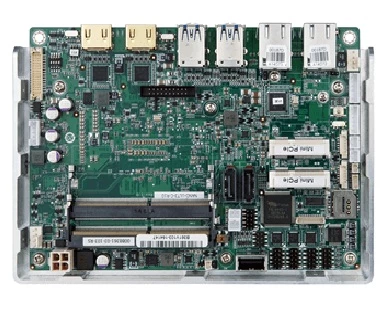

NANO-ULT3-i5

IEI
SKU: 56250300
EPIC SBC supports Intel 14nm 6th Gen Mobile i5-6300U Dual Core 3Ghz (15W) on-board CPU ( ULT ) with HDMI/LVDS/iDP, Dual PCIe GbE, 4xUSB 3.0, 3xUSB 2.0 internal, 1x PCIe Mini Full Size, 1 x PCIe mini halfsize, SATA 6Gb/s,audio
Price on request
Available
Available
System Architecture
Form Factor
EPIC
Construction
Type
Fanless
CPU
Processor Installed
Intel Core i5-6300U
Socket
CPU onboard
Max CPU frequency
3 GHz
Number of CPU
1
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, iDP
Ethernet
Controller Type
Intel i219-LM, Intel i219-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
2
SIM Card slots
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.85 kg
System Architecture
Form Factor
EPIC
Construction
Type
Fanless
CPU
Processor Installed
Intel Core i5-6300U
Socket
CPU onboard
Max CPU frequency
3 GHz
Number of CPU
1
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, iDP
Ethernet
Controller Type
Intel i219-LM, Intel i219-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
2
SIM Card slots
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.85 kg
System Architecture
Form Factor
EPIC
Construction
Type
Fanless
CPU
Processor Installed
Intel Core i5-6300U
Socket
CPU onboard
Max CPU frequency
3 GHz
Number of CPU
1
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, iDP
Ethernet
Controller Type
Intel i219-LM, Intel i219-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
2
SIM Card slots
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.85 kg
System Architecture
Form Factor
EPIC
Construction
Type
Fanless
CPU
Processor Installed
Intel Core i5-6300U
Socket
CPU onboard
Max CPU frequency
3 GHz
Number of CPU
1
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, iDP
Ethernet
Controller Type
Intel i219-LM, Intel i219-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
2
SIM Card slots
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.85 kg
Documentation
DataSheet_NANO-ULT3
Documentation
DataSheet_NANO-ULT3
Documentation
DataSheet_NANO-ULT3
Documentation
DataSheet_NANO-ULT3
