MGate MB3180

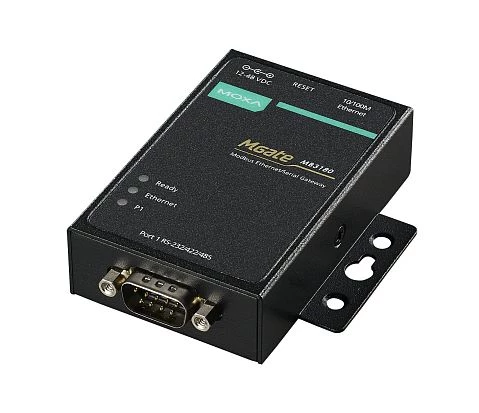

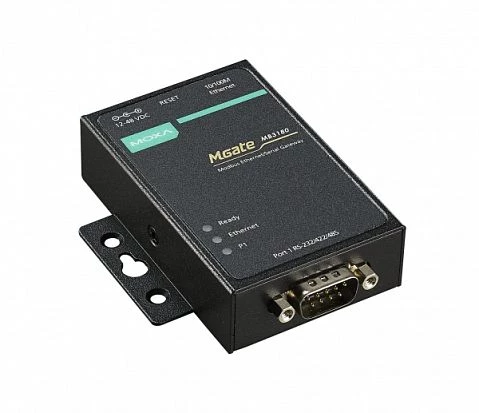

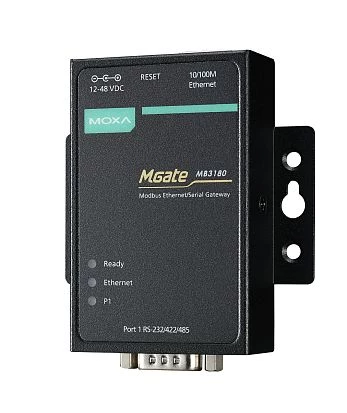

1-port converter MGate MB3180 is a cost-efficient and reliable device from a basic series that converts RS-232/422/485 serial interface and Modbus RTU/ASCII protocol into Modbus TCP (Ethernet). For this purpose, the gateway is equipped with a universal COM-port with a DB9M slot and a Fast Ethernet port with an RJ-45 slot. The converter is considered to be a Plug-and-Play device that is compatible with any Modbus network and provides maximum simple connection and configuration of serial and TCP devices. Switch gateway Modbus MGate MB3180: description and features: Conversion in either direction. Modes: Modbus RTU/ASCII Slave/Master and Modbus TCP Client/Server. Maximum number of devices: 16 TCP masters, 31 RTU/ASCII slaves, 32 TCP slaves. COM-port rate: from 50 bit/s up to 921.6 Kbit/s. Ethernet port rate: up to 100 Mbit/s. Support of interface type auto detection (Auto MDI/MDIX). There are integrated intelligent functions: Automatic Data Direction Control (optimization of routes), Smart Routing (by IP address, port number or ID), MXview, SNMP v1 (reading). There are convenient setup and configuration modes using a WEB-interface, Windows utilities, a serial console and a Telnet network. Input voltage: 12…48 V DC. Current consumption: 200 mA. Operating temperatures range: 0…60 °С. Certificates for protection against voltage spikes and impulse noise: EN-55022/55024/61000-4, FCC. The device is housed in a fanless metal chassis that rates IP30 with compact dimensions (22х52х80) that facilitates mount on a wall or a DIN-rail when there is a lack of space. The model reliability of confirmed by mean time between failures (MTBF) that exceeds 70 years. The industrial protocol converter MGate MB3180 by MOXA helps you to integrate in a single network the equipment that uses different protocols and serial interfaces of any standard. The gateway can be integrated in any large-scale SCADA monitoring system. The device minimum price secures cost-efficiency of this solution.
