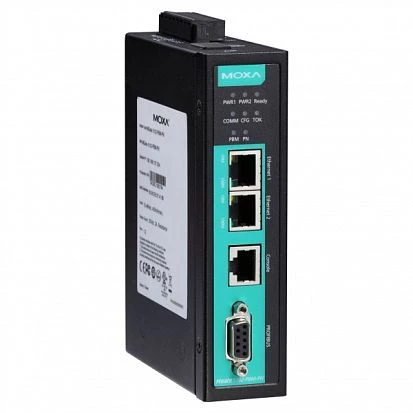

MGate 5102-PBM-PN

Protocol converter MGate 5102-PBM-PN designed by MOXA acts as a communication portal between PROFIBUS programmable logic controllers and PROFINET hosts. Operation modes: in PROFIBUS network — DP-V1 Master, in PROFINET network — Slave. The model houses an isolated RS-232 COM-port with a DB9F slot and two Ethernet ports with one IP address and opportunity for cascading. There are easy configuration and setup modes, built-in monitoring and diagnostics tools. 1-port gateway MGate 5102-PBM-PN: description and features: Ethernet: 2х10/100 Base TX (RJ-45). Auto MDI/MDIX. Magnetic isolation: 1.5 kV. PROFIBUS rate: 9.6 Kbit/s…12 Mbit/s. Contactless optical isolation: 2 kV. It eliminates the risks of current leakage. The cascading of Ethernet paths allows integrating several gateways, so that no additional switch is required. It also increases the network flexibility and topology options and reduces costs. Windows MGate Manager supports AutoScan function for PROFIBUS devices identification. The data export into GSDML is available. Configuration options: WEB, Serial, Telnet, Windows. GUI graphic web utility visualizes input-output. There is a log keeping. Authentication, encryption, cryptoprotection: HTTPS, SSH, SNMPv3. There is a built-in micro SD card socket (32 Gb). A redundant power input ensures uninterruptible power supply: 12…48 V DC. A relay output promptly informs engineers about power failure or communication disruption. EMI/EMS: EN 55022/24, FCC 15B (classА), EN 61000-4. The fanless metal housing that rates IP30 protects the electronic components from shocks and vibrations (IEC 60068-2-6/27) and is available in a DIN-rail mounting configuration. The standard mean time between failures (MTBF) – over 110 years. Hence, the converter MGate 5102-PBM-PN is a convenient solution for protocols conversion and construction of safe industrial automation systems. The international certificates C1D2, ATEX Zone 2 confirm high level of protection from aggressive environment and safe device operation at power engineering and oil and gas recovery facilities.
