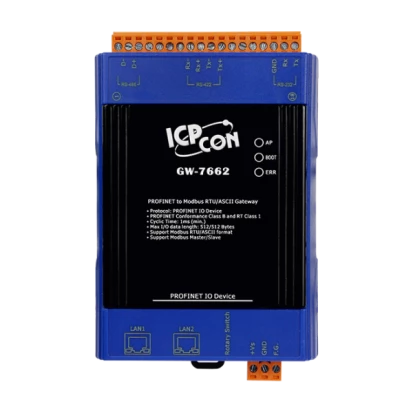

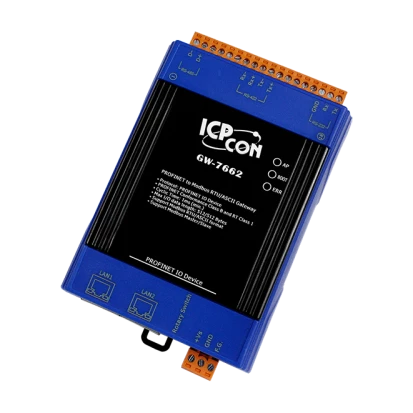

GW-7662
ICP DAS
SKU: 06821200
PROFINET to Modbus RTU/ASCII Gateway, 32-bit CPU
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
PROFINET slave, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
Managment Protocols
Telnet, VLAN, DHCP, SNMP, TFTP, IGMP, ARP, ICMP
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
42 mm
Depth
76 mm
Height
119 mm
Dimensions
Net Weight
0.17 kg
Gross Weight
0.26 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
PROFINET slave, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
Managment Protocols
Telnet, VLAN, DHCP, SNMP, TFTP, IGMP, ARP, ICMP
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
42 mm
Depth
76 mm
Height
119 mm
Dimensions
Net Weight
0.17 kg
Gross Weight
0.26 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
PROFINET slave, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
Managment Protocols
Telnet, VLAN, DHCP, SNMP, TFTP, IGMP, ARP, ICMP
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
42 mm
Depth
76 mm
Height
119 mm
Dimensions
Net Weight
0.17 kg
Gross Weight
0.26 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
PROFINET slave, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
Managment Protocols
Telnet, VLAN, DHCP, SNMP, TFTP, IGMP, ARP, ICMP
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
42 mm
Depth
76 mm
Height
119 mm
Dimensions
Net Weight
0.17 kg
Gross Weight
0.26 kg
