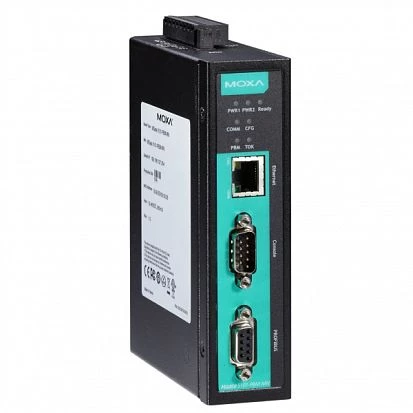

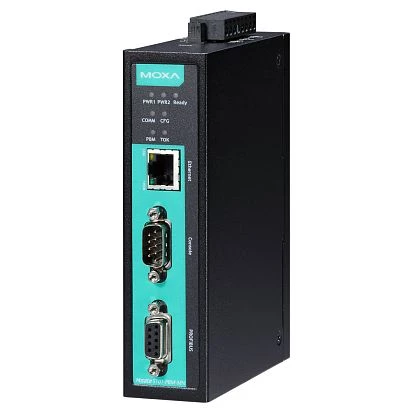

MGate 5101-PBM-MN

Protocol converter MGate 5101-PBM-MN. 1-port converter MGate 5101-PBM-MN by MOXA provides easy connection of PROFIBUS devices to Modbus TCP hosts. Operation modes: in PROFIBUS network — DP-V1 Master, in Modbus TCP network — Client/Server. The distinctive features of the device are as follows: intelligent function of device auto detection, built-in packet analyzer and user-friendly diagnostics tools. The model is provided in a fanless metal housing and is protected from electromagnetic exposure and is adapted for operation in aggressive industrial environment. Converter MGate 5101-PBM-MN from MOXA: description and features: PROFIBUS interface. Rate: from 9.6 Kbit/s up to 12 Mbit/s. Slot: DB9F. Galvanic isolation (2 kV). Ethernet interface. Rate: 10/100 Mbit/s. Slot: RJ-45. Auto MDI/MDIX. Special MGate Manager utility with the innovative AutoScan function automatically detects all connected PROFIBUS devices and configuration of input-output modules. A user-friendly mapping table facilitates setup of Modbus TCP Master. There are built-in configuration import/export functions, tools for monitoring and Modbus log analysis. A web console and a Telnet console ensure remote control and support security and encryption protocols (HTTPS, SSH) to prevent unauthorized access. The elaborate system of LED indicators of power supply status, and PROFIBUS and Ethernet paths status simplify diagnostics and maintenance. Input voltage: 12…48 V DC. Dual power input allows connecting a backup power supply source. There is an integrated discrete relay output channel for alarm notifications. Mean time between failures (MTBF) – 60 years. Hence, the industrial gateway MGate 5101-PBM-MN from MOXA is an absolutely user-friendly device for protocol conversion. C1D2, ATEX Zone 2, IECEx international certificates testify its safe operation when constructing automated systems in explosion hazardous environment at production and energy supply facilities (oil and gas recovery). The affordable price of MGate 5101-PBM-MN will not affect your investment budget.
